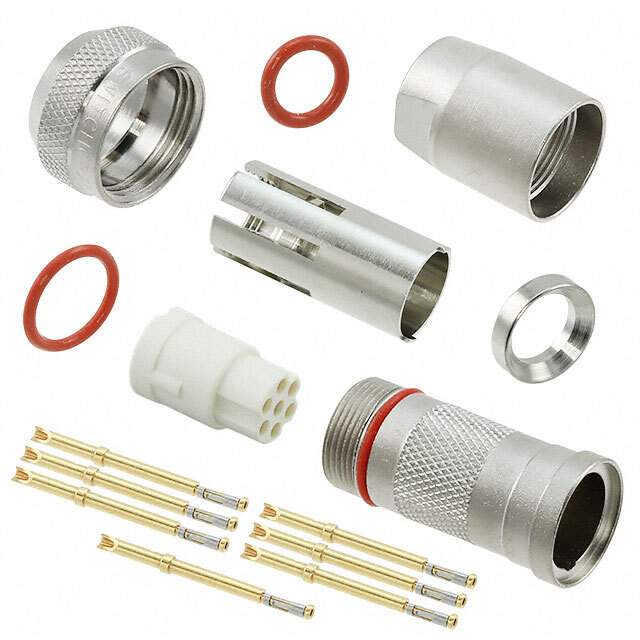

TS2C7F26C Real Image
Same model may have multiple batches, images only for reference.

TS2C7F26C

Part No TS2C7F26C
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN PLUG FMALE 7POS GOLD / Conn Circular SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Bulk
Datasheet
TS2C7F26C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Series Dura-Twist, TS
Packaging Bulk
Connector Type Plug, Female Sockets
Number of Positions 7
Mounting Free Hanging (In-Line)
Termination Crimp or Solder Cup
Fastening Type Threaded
Orientation Keyed
Ingress Protection IP66/67/68 - Dust Tight, Water Resistant, Waterproof
Shell Material, Finish Copper Alloy, Nickel Plated, Electroless
Contact Finish Gold
Features Backshell, Coupling Nut, Shielded
Voltage Rating DC 30VAC/DC
Win Source Part Number 793954-TS2C7F26C
Popularity Medium
Supply and Demand Status Limited
Family Name TS2
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian TS2C7F26C CAD Model

Description

The Switchcraft Inc. TS2C7F26C is a Dura-Twist, TS series connector that has a female socket and is shielded.

  • Series: Dura-Twist, TS
  • Connector Type: Female Socket
  • Shielded: Yes
  • Positions: 7
  • Orientation: Keyed
  • Mounting Type: Free Hanging (In-Line)
  • Ingress Protection: IP66/67/68
  • Current/Voltage Rating: 30VAC/DC
  • Material: Copper Alloy, Nickel Plated, Electroless
