Same model may have multiple batches, images only for reference.

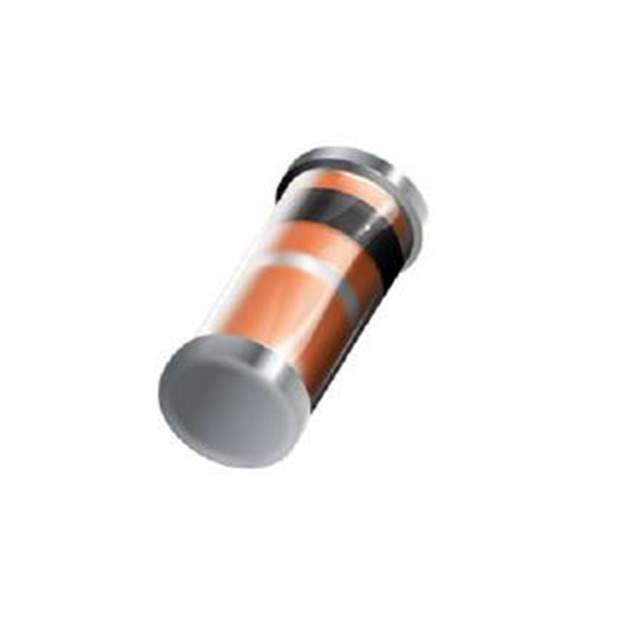

BAV103 L1 Real Image
Same model may have multiple batches, images only for reference.

BAV103 L1

Part No BAV103 L1
Manufacturer Taiwan Semiconductor
Catalog OEM Parts (A - B)
Description Rectifier Diode Small Signal Switching 250V 0.2A 50ns 2-Pin Mini-MELF T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package MELF
Diameter 1.6 mm
Element Configuration Single
Forward Current 200 mA
Forward Voltage 1 V
Length 3.7 mm
Max Forward Surge Current (Ifsm) 4 A
Maximum Operating Temperature 200 °C
Max Repetitive Reverse Voltage (Vrrm) 250 V
Min Operating Temperature -65 °C
Mount Surface Mount
Number of Pins 2
Peak Non-Repetitive Surge Current 4 A
Peak Reverse Current 100 nA
Radiation Hardening No
Reverse Recovery Time 50 ns
RoHS Compliant
Schedule B 8541100070
Win Source Part Number 1048278-BAV103 L1
Categories OEM Parts(A-B)
Manufacturer Taiwan Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian BAV103 L1 CAD Model

Description

The Taiwan Semiconductor BAV103 L1 is a surface mount diode that has a peak non-repetitive surge current of 4A and a forward current of 200mA.

  • Forward Voltage: 1V
  • Maximum Operating Temperature: 200 degrees Celsius
