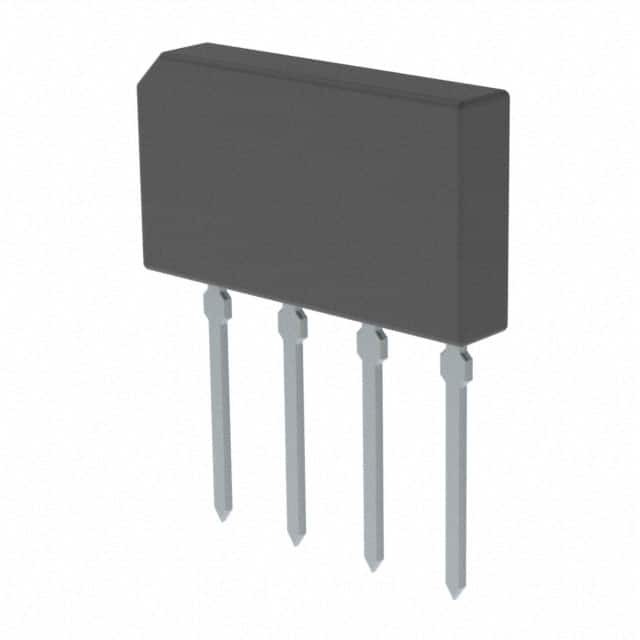

GBL10 Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

GBL10

Part No GBL10
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor Corporation
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package GBL
Base Product Number GBL10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1315199-GBL10
Ultra Librarian 3D Model Ultra Librarian GBL10 CAD Model

Description

The Taiwan Semiconductor Corporation GBL10 is a standard technology single-phase diode bridge rectifier that comes in a 4-SIP, GBL package.

  • Current Average Rectified (Io): 4A
  • Voltage Forward (Vf) (max) @ If: 1.1V @ 4A
  • Current Reverse Leakage @ Vr: 5 µA @ 1000V
  • Voltage Peak Reverse (max): 1kV
  • Temperature Range: -55°C to 150°C (TJ)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
