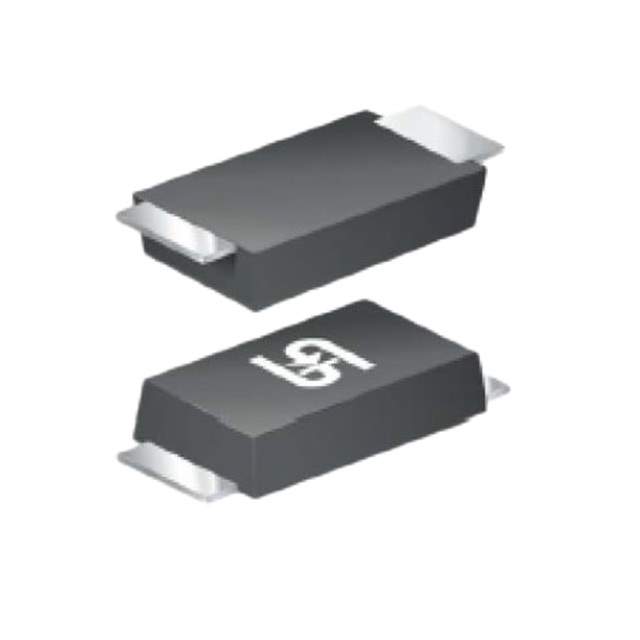

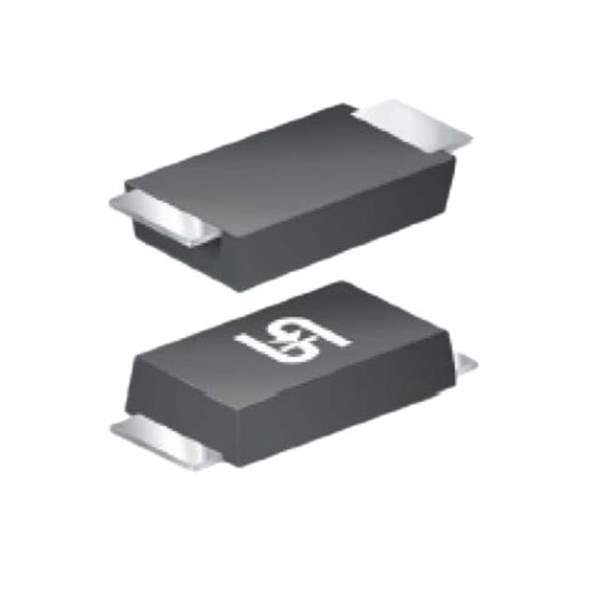

SS34LWHRVG Real Image
Same model may have multiple batches, images only for reference.

SS34LWHRVG

Part No SS34LWHRVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A SOD123W / Diode Schottky 40 V 3A Surface Mount SOD-123W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 40 V
Mounting SMD (SMT)
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SS34
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SS34LWHRVGTR,SS34LWHRVGDKR,SS34LWHRVGCT
Standard Package 3,000
Win Source Part Number 1096110-SS34LWHRVG
Ultra Librarian 3D Model Ultra Librarian SS34LWHRVG CAD Model

Description

The Taiwan Semiconductor SS34LWHRVG is a fast recovery Schottky rectifier diode with a voltage DC reverse of 40V and an average rectified current of 3A.

  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 3A
  • Current - Reverse Leakage @ Vr: 200μA @ 40V
  • Mounting Type: SMD (SMT)
  • Package / Case: SOD-123W
  • Operating Temperature: -55°C to 125°C
