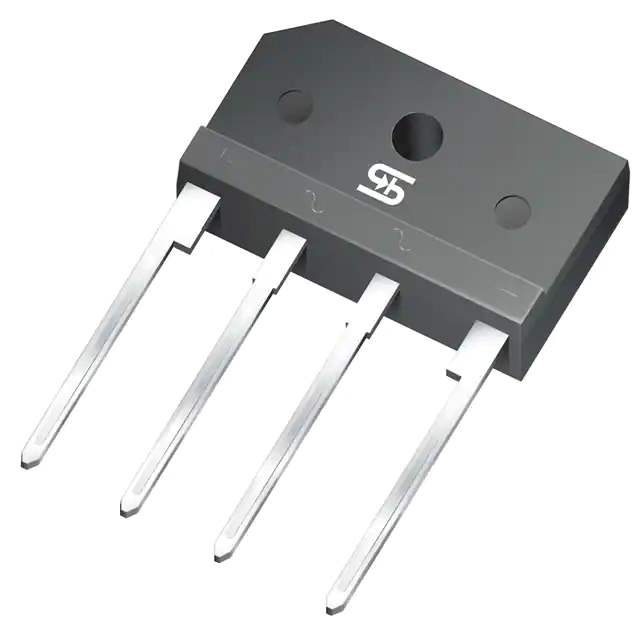

TS4K80 Real Image
Same model may have multiple batches, images only for reference.

TS4K80

Part No TS4K80
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 4A TS4K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBL
Supplier Device Package TS4K
Base Product Number TS4K80
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691699-TS4K80
Ultra Librarian 3D Model Ultra Librarian TS4K80 CAD Model

Description

The 691699-TS4K80 is a bridge rectifier with a maximum peak reverse voltage of 800 V.

  • Average Rectified Current (Io): 4 A
  • Maximum Peak Reverse Voltage: 800 V
  • Forward Voltage (Vf): 1.1 V @ 4 A
  • Current Leakage @ Maximum Reverse Voltage (Vr): 10 μA
  • Mounting Type: Through Hole
  • Package Type: 4-SIP, GBL
  • Supplier Device Package: TS4K
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
  • Status: Active
