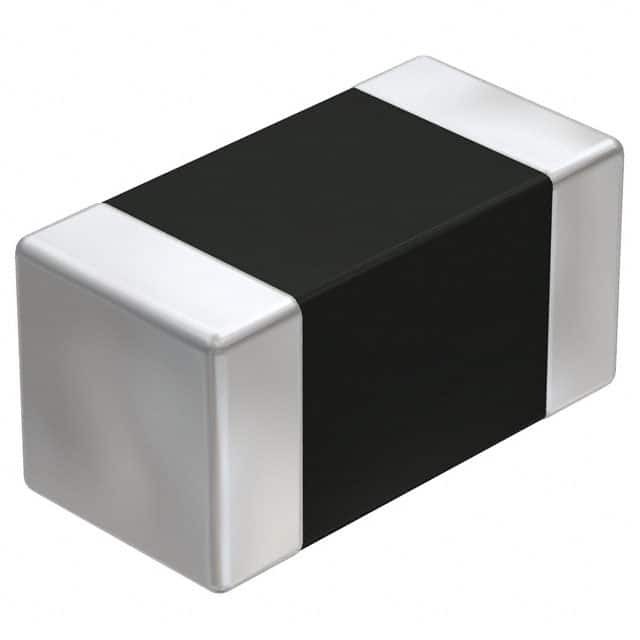

Same model may have multiple batches, images only for reference.
EVK105CH030JW-F Taiyo Yuden
Same model may have multiple batches, images only for reference.

EVK105CH030JW-F

Part No EVK105CH030JW-F
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 3PF 16V C0H 0402 / 3 pF ±5% 16V Ceramic Capacitor C0H 0402 (1005 Metric)
Datasheet
EVK105CH030JW-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Taiyo Yuden
Series V
Package Tape & Reel (TR)
Product Status Last Time Buy
Capacitance 3 pF
Tolerance ±5%
Voltage - Rated 16V
Temperature Coefficient C0H
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.020" (0.52mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names RV EVK105 CH030JW-F,EVK105CH030JWF
Standard Package 10,000
Win Source Part Number 1209047-EVK105CH030JW-F
Ultra Librarian 3D Model Ultra Librarian EVK105CH030JW-F CAD Model

Description

This electronic component is a ceramic capacitor manufactured by Taiyo Yuden with Win Source Part Number 1209047-EVK105CH030JW-F.

  • Series: V series
  • Features: High Q, low loss
  • Package: Tape & Reel (TR)
  • Capacitance: 3 pF
  • Tolerance: ±5 percent
  • Voltage Rating: 16V
  • Temperature Coefficient: C0H
  • Thickness (Max): 0.020" (0.52mm)
  • Mounting Type: Surface mount, MLCC
  • Category: Capacitors
  • Applications: RF, Microwave, High Frequency
  • Standard Package: 10,000
  • ECCN: EAR99.24.0020
  • Alternative Parts (Cross-Reference): RV EVK105 CH030JW-F and RVEVK105CH030JW-F
