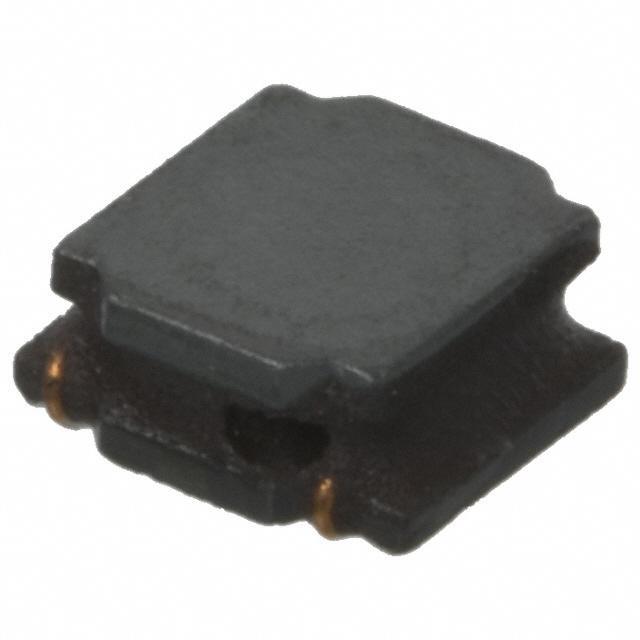

NR3015T100M Taiyo Yuden
Same model may have multiple batches, images only for reference.

NR3015T100M

Part No NR3015T100M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 10uH 20% 100KHz Ferrite 0.71A 0.276Ohm DCR 1212 T/R / FIXED IND 10UH 710MA 276 MOHM
Datasheet
NR3015T100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 710mA
Current - Saturation 700mA
DC Resistance (DCR) 276 mOhm Max
Frequency - Self Resonant 28MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 025659-NR3015T100M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Family Name NR
Introduction Date October 25, 2011
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian NR3015T100M CAD Model

Description

The Taiyo Yuden NR3015T100M is a wirewound inductor with 10μH inductance and 710mA current rating. It is made of ferrite material and has a saturation current of 700mA.

  • Inductance: 10μH
  • Current Rating: 710mA
  • Material: Ferrite
  • Saturation Current: 700mA
  • Tolerance: ±20%
  • DC Resistance: 276 mOhm Max
  • Operating Temperature: -25°C to 120°C
  • Application: Inductors, Coils, and Chokes
  • Frequency Self-Resonant: 28MHz
  • Frequency Test: 100kHz
  • Packaging: Reel - TR
  • Mounting: SMD (SMT) technology
  • Supply and Demand Status: Sufficient
