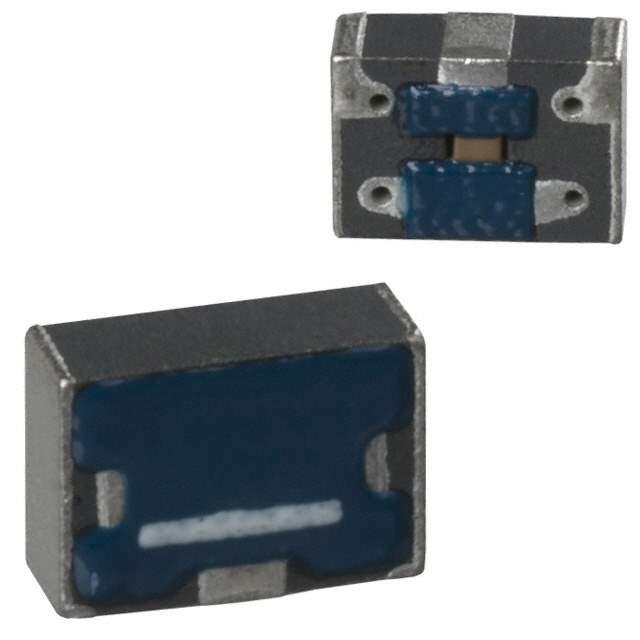

ACH4518-332-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACH4518-332-TD01

Part No ACH4518-332-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-332-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 35MHz to 100MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 007834-ACH4518-332-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-332-TD01 CAD Model

Description

Product Overview

The ACH4518-332-TD01 provides exceptional EMI suppression performance, ideal for applications that demand precision and reliability. This component is engineered to offer enhanced protection against signal disruptions.

Applications

  • Broadcasting equipment
  • Computer peripherals
  • Smart home devices

Features and Benefits

  • Superior EMI Suppression: Protects circuits from spurious noise.
  • Compact Form Factor: Saves space on densely populated circuit boards.
  • Durable Construction: Built for long-lasting use in harsh conditions.

Additional Details

The ACH4518-332-TD01 is made from high-quality materials and is available in a standard package, simplifying integration into existing designs.
