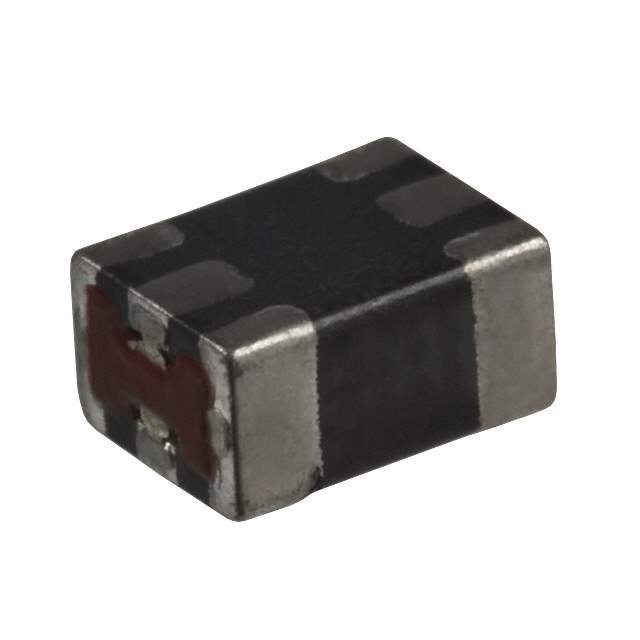

ACM4532-801-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM4532-801-2P-T001

Part No ACM4532-801-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 800Ohm 100MHz 1A 0.1Ohm DCR SMD T/R / CMC 1A 2LN 800 OHM SMD
Datasheet
ACM4532-801-2P-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 800 Ohm @ 100MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 100 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1812 (4532 Metric), 6 Lead
Win Source Part Number 007858-ACM4532-801-2P-T001
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ACM
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ACM4532-801-2P-T001 CAD Model

Description

ACM4532-801-2P-T001: Advanced Common Mode Choke

The ACM4532-801-2P-T001 offers cutting-edge technology for superior noise suppression in electronic systems, perfect for modern high-tech applications.

  • Applications
    • Medical Devices
    • Data Centers
    • Aerospace Systems
  • Features and Benefits
    • Superior Noise Filtering: Reduces potential disruptions significantly.
    • Space-Efficient: Designed for compact installations.
    • High Durability: Suitable for rigorous operational conditions.
  • Additional Details
    • Designed for next-generation electronic solutions.
    • Pioneers innovation within the ACM product line.
    • Adheres to stringent regulatory standards.
