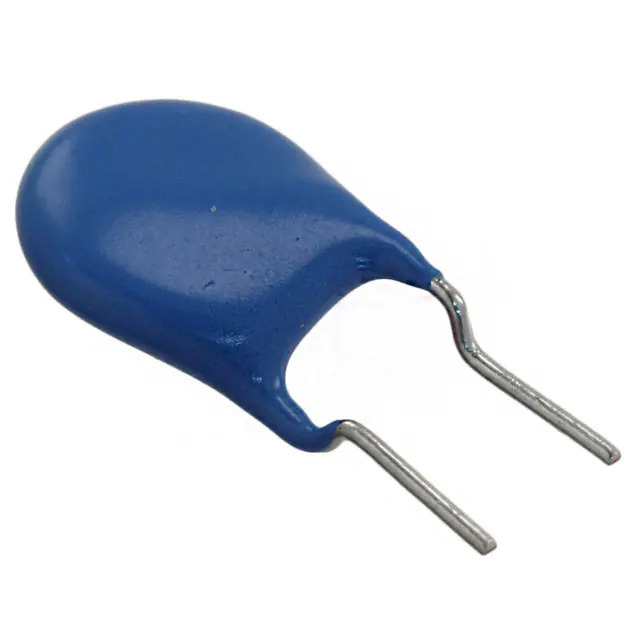

Same model may have multiple batches, images only for reference.
CC45SL3FD151JYNNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3FD151JYNNA

Part No CC45SL3FD151JYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 150PF 3KV SL RADIAL / 150 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Product Status Active
Capacitance 150 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359992-CC45SL3FD151JYNNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3FD151JYNNA CAD Model

Description

The CC45SL3FD151JYNNA is a ceramic capacitor from TDK Corporation.

  • Series: CC45
  • Capacitance: 150 pF
  • Tolerance: ±5%
  • Voltage - Rated: 3000V (3kV)
  • Mounting Type: Through Hole
  • Lead Style: Formed Leads
  • Lead Spacing: 0.295" (7.50mm)
  • Package / Case: Radial, Disc
  • Operating Temperature: -25°C ~ 125°C
  • Applications: General Purpose
  • Packaging: Bulk
