Same model may have multiple batches, images only for reference.

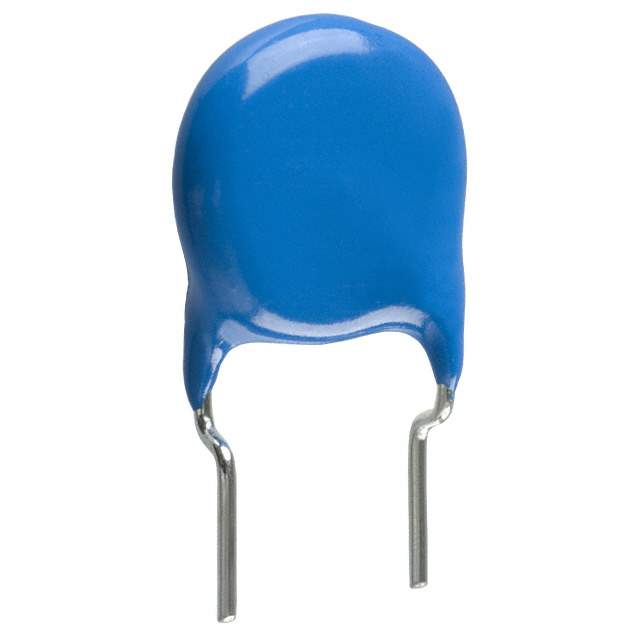

CK45-B3AD822KYNN Real Image
Same model may have multiple batches, images only for reference.

CK45-B3AD822KYNN

Part No CK45-B3AD822KYNN
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 8200PF 1KV RADIAL
Datasheet
CK45-B3AD822KYNN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Bulk
Status Obsolete(EOL)
Capacitance 8200pF
Tolerance ±10%
Voltage Rating 1000V (1kV)
Temperature Coefficient B
Temperature Range - Operating -25°C to 105°C
Features High Voltage
Applications General Purpose
Mounting Through Hole
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
Win Source Part Number 1013395-CK45-B3AD822KYNN
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CK45-B3AD822KYNN CAD Model

Description

The TDK Corporation CK45-B3AD822KYNN is a capacitor that has a capacitance of 8200pF and a voltage rating of 1000V.

  • Capacitance: 8200pF
  • Voltage Rating: 1000V
  • Mounting Style: Through-hole
  • Lead Spacing: 0.295 inches
  • Tolerance: ±10%
  • Temperature Coefficient: B
  • Status: Now obsolete (EOL)
