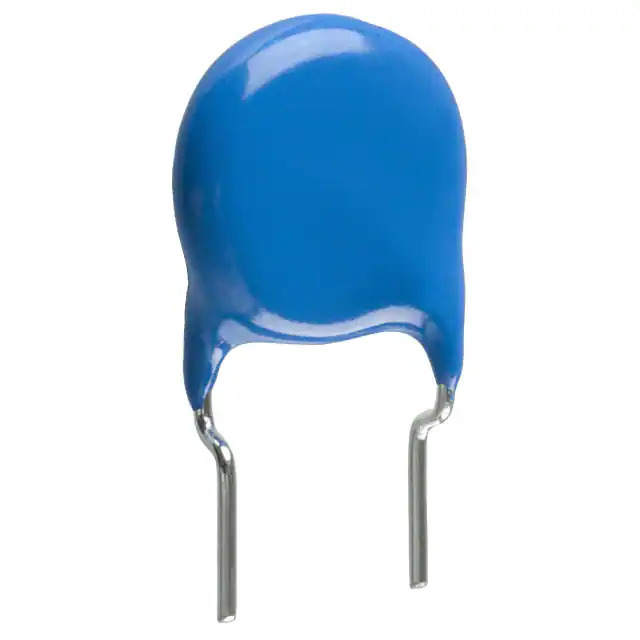

Same model may have multiple batches, images only for reference.
CK45-R3AD222K-NRA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-R3AD222K-NRA

Part No CK45-R3AD222K-NRA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 1KV RADIAL / 2200 pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45-RR
Package Bulk
Product Status Obsolete
Capacitance 2200 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient R
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.610" (15.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360013-CK45-R3AD222K-NRA
Ultra Librarian 3D Model Ultra Librarian CK45-R3AD222K-NRA CAD Model

Description

The CK45-RR series ceramic capacitor from TDK Corporation is a high voltage component designed for general-purpose applications.

  • Series: CK45-RR
  • Capacitance: 2200 pF
  • Voltage Rating: 1000V
  • Applications: General Purpose
  • Operating Temperature: -25°C ~ 125°C
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Size / Dimension: 0.453" Dia
  • Height - Seated (Max): 0.610"
  • Product Status: Obsolete
