Same model may have multiple batches, images only for reference.

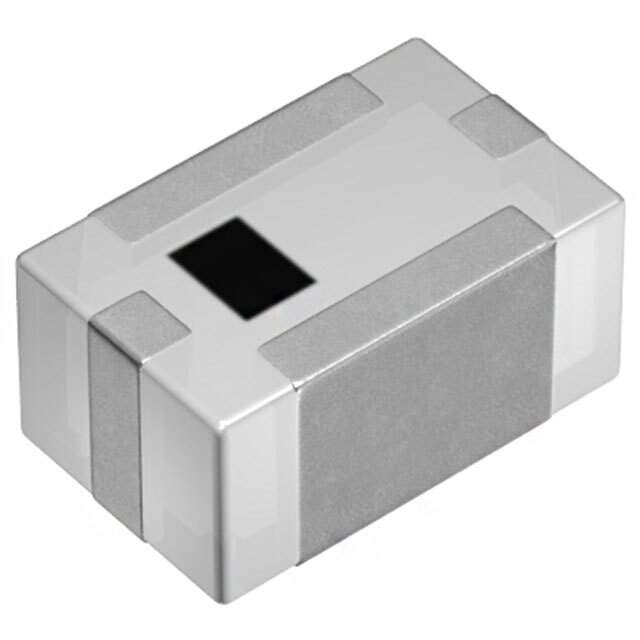

DEA205375BT-2054A1 Real Image
Same model may have multiple batches, images only for reference.

DEA205375BT-2054A1

Part No DEA205375BT-2054A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER 5.375GHZ 0805 / Multilayer Band Pass Filter
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Frequency 5.375GHz Center
Bandwidth 950MHz
Ripple 0.6dB
Insertion Loss 2.2dB
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), 4 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Maximum) 0.041" (1.05mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806708-DEA205375BT-2054A1
Ultra Librarian 3D Model Ultra Librarian DEA205375BT-2054A1 CAD Model

Description

The TDK Corporation 806708-DEA205375BT-2054A1 is a bandpass filter designed for use in wireless communication systems.

  • Center Frequency: 5.375GHz
  • Bandwidth: 950MHz
  • Insertion Loss: 2.2dB
  • Ripple: 0.6dB
  • Package: 0805 (2012 Metric)
  • Height: 0.041" (1.05mm)
  • Temperature Range: Suitable for outdoor use
