Same model may have multiple batches, images only for reference.

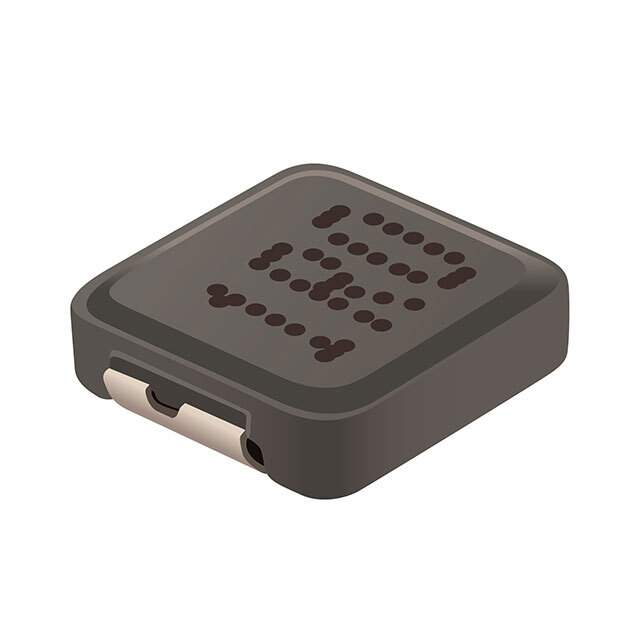

SRP5015TA-2R2M Real Image
Same model may have multiple batches, images only for reference.

SRP5015TA-2R2M

Part No SRP5015TA-2R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5015TA-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5015TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 52mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 48MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRP5015TA
Other Names SRP5015TA-2R2MDKR,SRP5015TA-2R2MTR,SRP5015TA-2R2MCT
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273911-SRP5015TA-2R2M
Ultra Librarian 3D Model Ultra Librarian SRP5015TA-2R2M CAD Model

Description

The SRP5015TA-2R2M is a shielded drum core wirewound inductor from Bourns Inc.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current: 4 A
  • DC Resistance: 52 mOhm maximum
  • Core Material: Carbonyl powder
  • Self-Resonant Frequency: 48 MHz
  • Packaging: Tape and Reel
  • Height: 0.059 inches (1.50 mm)
  • Temperature Range: -55°C to 150°C
  • AEC-Q200: Compliant
