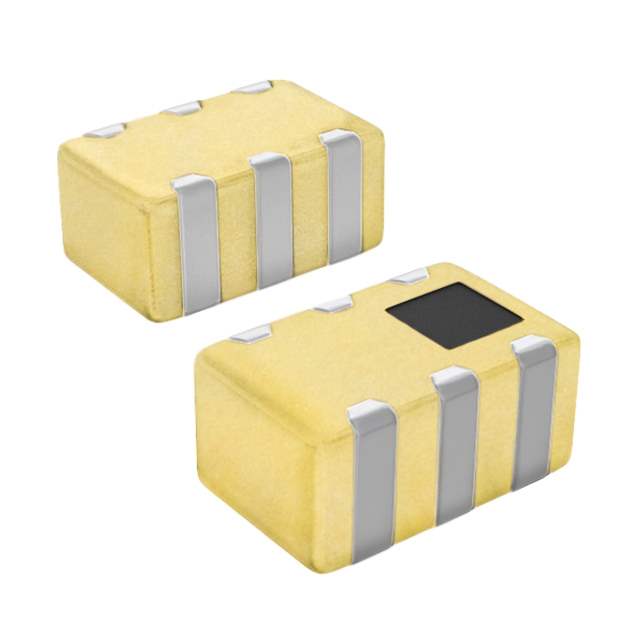

HHM1520A2 Real Image
Same model may have multiple batches, images only for reference.

HHM1520A2

Part No HHM1520A2
Manufacturer TDK Corporation
Catalog Balun
Description XFRMR BALUN RF 2.4GHZ SMD
Datasheet
HHM1520A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Range 2.3GHz to 2.5GHz
Impedance - Unbalanced/Balanced 50 / 100 Ohm
Phase Difference 180° ±10
Insertion Loss (Max) 1.0dB
Return Loss (Min) 10dB
Mounting Surface Mount
Win Source Part Number 016952-HHM1520A2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HHM1520A2 CAD Model

Description

The HHM1520A2 is an electronic component manufactured by TDK Corporation. The supply and demand status is sufficient. This component is suitable for various RF/IF and RFID applications. It has a frequency range of 2.3GHz to 2.5GHz, an unbalanced/balanced impedance of 50/100 Ohm, and a phase difference of 180° ±10. It has an insertion loss of 1.0dB and a return loss of 10dB. This product is a reliable and efficient component that can be used in various electronic devices.
