HHM1603A1

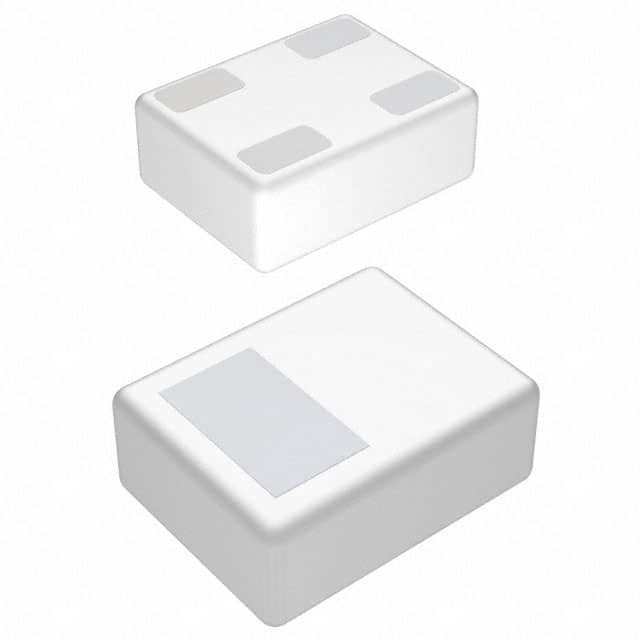

Same model may have multiple batches, images only for reference.

HHM1603A1

Part No HHM1603A1
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 2.3GHZ-2.7GHZ 50/100 4SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Series HHM
Package Tape & Reel
Product Status Active
Frequency Range 2.3GHz ~ 2.7GHz
Impedance - Unbalanced/Balanced 50 / 100Ohm
Phase Difference 180° ±10°
Insertion Loss (Max) 0.5dB
Return Loss (Min) 10dB
Package / Case 4-SMD
Mounting Type Surface Mount
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873547-HHM1603A1
Ultra Librarian 3D Model Ultra Librarian HHM1603A1 CAD Model

Description

The TDK Corporation HHM1603A1 is a balun for RF and wireless applications. It operates in the frequency range of 2.3GHz to 2.7GHz and has an impedance of 50/100Ohm (unbalanced/balanced).

  • Application: RF and wireless
  • Frequency Range: 2.3GHz to 2.7GHz
  • Impedance: 50/100Ohm (unbalanced/balanced)
  • Phase Difference: 180° ±10°
  • Insertion Loss (Max): 0.5dB
  • Return Loss (Min): 10dB
  • Mounting Type: surface mount
  • Package: 4-SMD
  • Manufacturer: TDK Corporation
