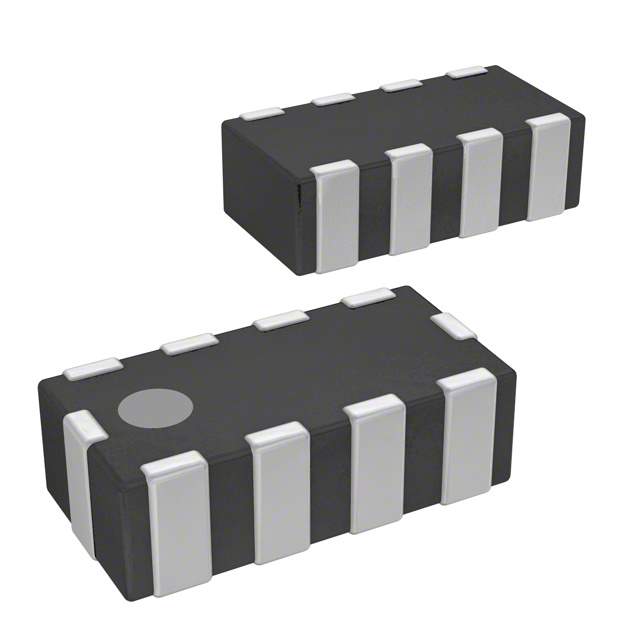

MEA2010LC040T002 Real Image
Same model may have multiple batches, images only for reference.

MEA2010LC040T002

Part No MEA2010LC040T002
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 4PF 310MHZ SMD
Datasheet
MEA2010LC040T002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 310MHz (Cutoff)
Current 100mA
Values C = 4pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 023174-MEA2010LC040T002
Ultra Librarian 3D Model Ultra Librarian MEA2010LC040T002 CAD Model

Description

The TDK Corporation 023174-MEA2010LC040T002 is an active electronic component.

  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Type: Low Pass
  • Voltage Rating: 6.3V
  • Applications: data lines for mobile devices
  • Technology: LC
  • Height: 0.024" (0.60mm)
  • Current: 100mA
  • Channels: 4
  • Attenuation Value: -
  • Filter Order: 2nd
  • Center / Cutoff Frequency: 310MHz (Cutoff)
  • Values: C = 4pF
  • ESD Protection: No
  • Category: Filters
  • Temperature Range - Operating: -40°C to 85°C
  • Dimension: 0.079" L x 0.039" W (2.00mm x 1.00mm)
  • Manufacturer: TDK Corporation
  • Win Source Part Number: 023174-MEA2010LC040T002
