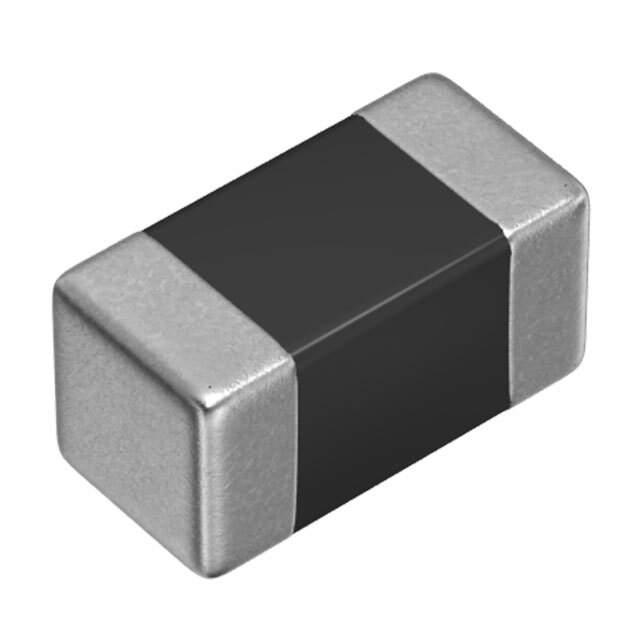

MLF1005DR12KT Real Image
Same model may have multiple batches, images only for reference.

MLF1005DR12KT

Part No MLF1005DR12KT
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 120NH 25MA 700 MOHM
Datasheet
MLF1005DR12KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Multilayer
Material - Core Ferrite
Inductance 120nH
Tolerance ±10%
Current Rating 25mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 10 @ 25MHz
Frequency - Self Resonant 400MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0402 (1005 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 099234-MLF1005DR12KT
Ultra Librarian 3D Model Ultra Librarian MLF1005DR12KT CAD Model

Description

The TDK Corporation MLF1005DR12KT is a multilayer ferrite inductor with a 120nH inductance and a current rating of 25mA. It is an obsolete (EOL) product with a 700 mOhm maximum DC resistance. The inductor is suitable for use in a variety of electronic applications, including power supplies, filters, and RF circuits. With its compact size and high Q factor, the MLF1005DR12KT is an excellent choice for space-constrained designs that require high-frequency performance.
