Same model may have multiple batches, images only for reference.

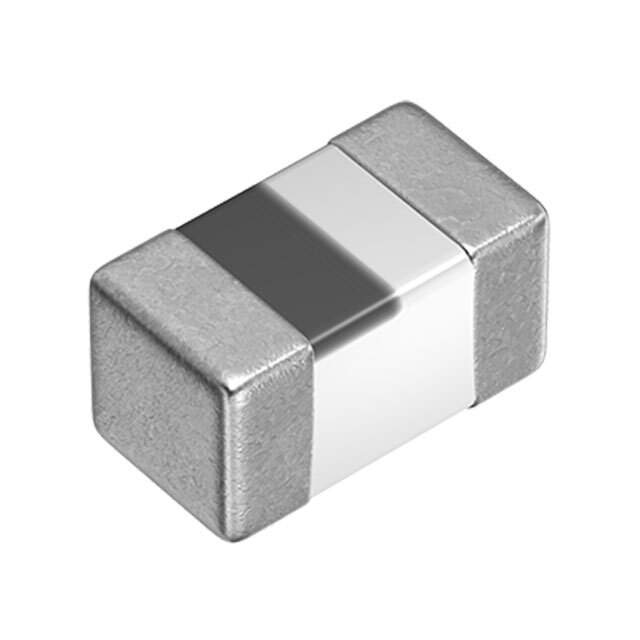

MLG0402P1N8ST000 Real Image
Same model may have multiple batches, images only for reference.

MLG0402P1N8ST000

Part No MLG0402P1N8ST000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.8NH 200MA 600MOHM SM / 1.8 nH Unshielded Multilayer Inductor 200 mA 600mOhm Max 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Multilayer
Material - Core Non-Magnetic
Inductance 1.8 nH
Tolerance ±0.3nH
Current Rating (Amps) 200 mA
Shielding Unshielded
DC Resistance (DCR) 600mOhm Max
Q @ Freq 9 @ 500MHz
Frequency - Self Resonant 8GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting Surface Mount
Case / Package 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.22mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 20,000
Win Source Part Number 1327733-MLG0402P1N8ST000
Ultra Librarian 3D Model Ultra Librarian MLG0402P1N8ST000 CAD Model

Description

The MLG0402P1N8ST000 is a fixed inductor that belongs to the inductors, coils, chokes category. It is manufactured by TDK Corporation and has a Win Source Part Number of 1327733-MLG0402P1N8ST000.

  • Type: multilayer
  • Shielding: unshielded
  • Inductance: 1.8 nH
  • Tolerance: ±0.3nH
  • Size: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Height-Seated: 0.009" (0.22mm)
  • Standard Package: 20,000
