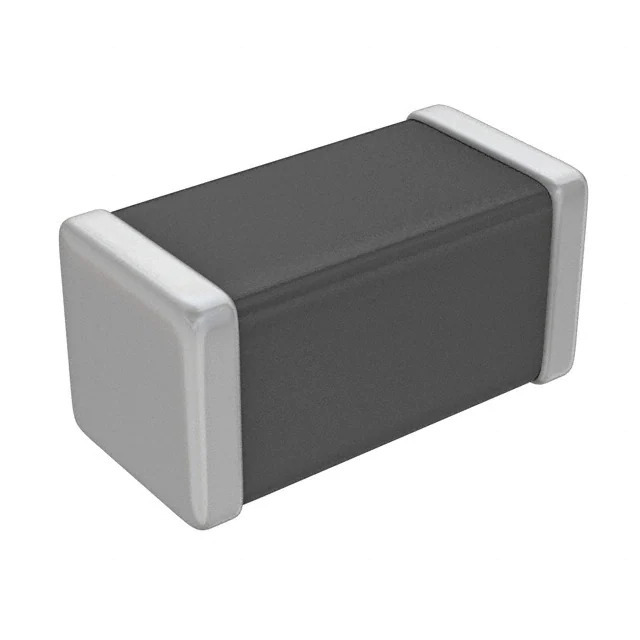

MPZ1005S331ETD25 TDK Corporation
Same model may have multiple batches, images only for reference.

MPZ1005S331ETD25

Part No MPZ1005S331ETD25
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 330 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series MPZ-E
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 330 Ohms @ 100 MHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 280mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1368995-MPZ1005S331ETD25
Ultra Librarian 3D Model Ultra Librarian MPZ1005S331ETD25 CAD Model

Description

The MPZ1005S331ETD25 is a ferrite bead chip designed for power line filtering applications from TDK Corporation.

  • Size: 0402 (1005 Metric)
  • Mounting Type: Surface Mountable
  • Impedance: 330 Ohms @ 100 MHz
  • Maximum Current: 700mA
  • DC Resistance: 280mOhm
  • Series: MPZ-E
  • Packaging: Tape and Reel
  • AEC-Q200: Rated
