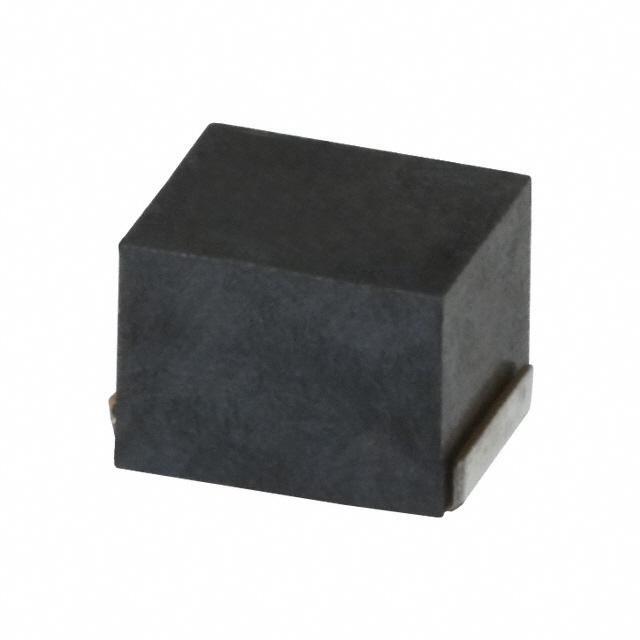

NLV32T-560J-PF TDK Corporation NLV32T-560J-PF Real Image
Same model may have multiple batches, images only for reference.
NLV32T-560J-PF TDK Corporation NLV32T-560J-PF Real Image
NLV32T-560J-PF TDK Corporation NLV32T-560J-PF Real Image
Same model may have multiple batches, images only for reference.

NLV32T-560J-PF

Part No NLV32T-560J-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 56UH 55MA 8 OHM SMD
Datasheet
NLV32T-560J-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 56μH
Tolerance ±5%
Current Rating 55mA
DC Resistance (DCR) 8 Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1210
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 025618-NLV32T-560J-PF
Family Name NLV-PF
Introduction Date July 26, 2001
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NLV32T-560J-PF CAD Model

Description

The TDK Corporation NLV32T-560J-PF is a wirewound type inductor that has a packaging of reel - TR and SMD mounting.

  • Packaging: Reel - TR
  • Mounting: SMD
  • Inductance: 56μH
  • Current Rating: 55mA
  • Height: 0.094" (2.40mm)
  • Tolerance: ±5%
  • Core Material: Ferrite
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency Self-Resonant: 13MHz
  • Frequency Test: 2.52MHz
  • DC Resistance (DCR): 8 Ohm Max
  • Case: 1210
  • Part Status: Active
  • Estimated EOL Date: 2019
  • Halogen-Free: Compliant
  • Popularity: High
  • Quantity per Package: 2k pcs
