Same model may have multiple batches, images only for reference.

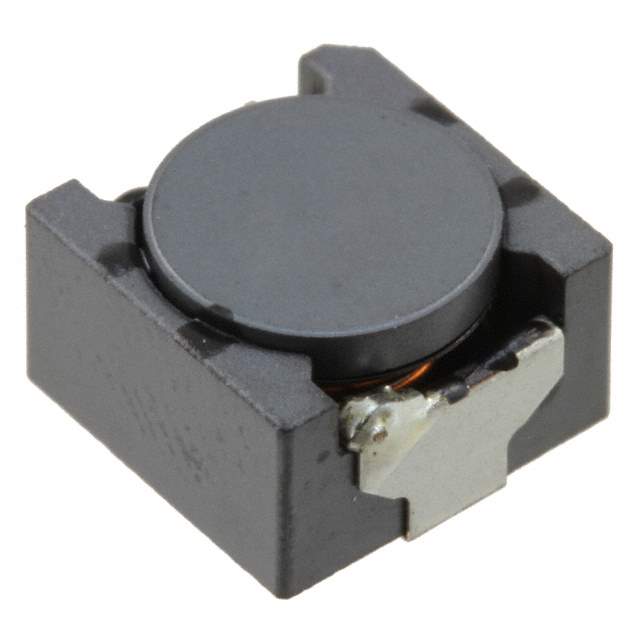

RLF10160T-680M1R2-D1 Real Image
Same model may have multiple batches, images only for reference.

RLF10160T-680M1R2-D1

Part No RLF10160T-680M1R2-D1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 1.2A 145.2 MOHM / Inductor Power Shielded Wirewound 68uH 20% 100KHz Ferrite 1.2A 0.1452Ohm DCR Automotive T/R
Datasheet
RLF10160T-680M1R2-D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series RLF-D
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±20%
Current Rating 1.2A
Current - Saturation 1.9A
Shielding Shielded
DC Resistance (DCR) 145.2 mOhm Max
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Win Source Part Number 793254-RLF10160T-680M1R2-D1
Popularity Medium
Supply and Demand Status Balance
Family Name RLF-D
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian RLF10160T-680M1R2-D1 CAD Model

Description

The RLF-D wirewound inductor from TDK Corporation is an AEC-Q200 rated, shielded inductor that comes in a non-standard package.

  • Inductance: 68μH
  • Current Rating: 1.2A
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 150°C
  • Current Saturation: 1.9A
  • Core Material: Ferrite
  • Test Frequency: 100kHz
  • DC Resistance (DCR): 145.2 mOhm Max
  • Dimensions: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • ECCN: EAR99
  • Country of Origin: China, Philippines
  • Estimated EOL Date: 2022
  • Popularity: Medium
  • Alternative Parts: CLF10060NIT-680M-D
