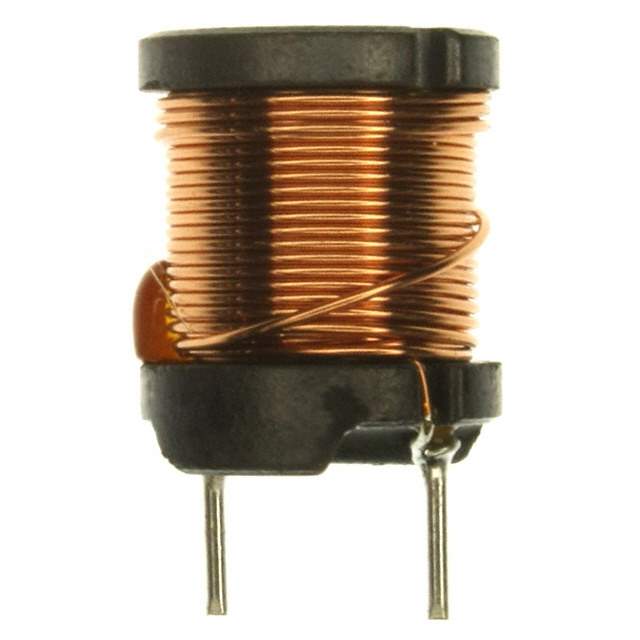

SL1215-471KR72-PF Real Image
Same model may have multiple batches, images only for reference.

SL1215-471KR72-PF

Part No SL1215-471KR72-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SL1215-471KR72-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SL
Package Tray
Product Status Obsolete
Type Wirewound
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 720 mA
Current - Saturation (Isat) 1.6A
Shielding Unshielded
DC Resistance (DCR) 480mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Other Names -SL1215-471KR72,SL1215471KR72PF,445-3796
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272688-SL1215-471KR72-PF
Ultra Librarian 3D Model Ultra Librarian SL1215-471KR72-PF CAD Model

Description

This SL series wirewound inductor is a fixed inductor with an unshielded design.

  • Series: SL series
  • Type: Fixed Inductor
  • Shielded: Unshielded
  • Inductance: 470 µH
  • Tolerance: ±10%
  • Height - Seated (Max): 0.591" (15.00mm)
  • Standard Package: 300 units
  • DC Resistance (DCR): 480mOhm Max
  • Current Rating: 720 mA
  • Mounting Type: Through-hole
  • Package: Radial, vertical cylinder (open)
  • Operating Temperature Range: -40°C ~ 85°C
  • Manufacturer: TDK Corporation
  • Lifecycle Status: Obsolete
