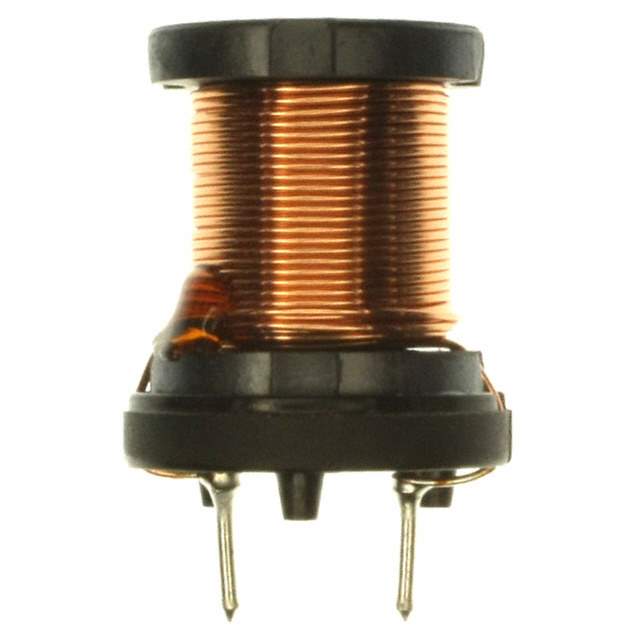

SL2125-152KR99-PF Real Image
Same model may have multiple batches, images only for reference.

SL2125-152KR99-PF

Part No SL2125-152KR99-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SL2125-152KR99-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SL
Package Tray
Product Status Obsolete
Type Wirewound
Inductance 1.5 mH
Tolerance ±10%
Current Rating (Amps) 990 mA
Current - Saturation (Isat) 1.3A
Shielding Unshielded
DC Resistance (DCR) 610mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.819" Dia (20.80mm)
Height - Seated (Max) 1.024" (26.00mm)
Other Names 445-3818,-SL2125-152KR99
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272706-SL2125-152KR99-PF
Ultra Librarian 3D Model Ultra Librarian SL2125-152KR99-PF CAD Model

Description

The SL series wirewound fixed inductor from TDK Corporation is a high-performance inductor designed for use in various electronic devices.

  • Inductance: 1.5 mH
  • Shielding: Unshielded
  • Tolerance: ±10%
  • DC Resistance (DCR): 610mOhm Max
  • Current Rating: 990 mA
  • Current Saturation: 1.3A
  • Mounting Type: Through-hole
  • Package: Radial, vertical cylinder (open) package
  • Height: 1.024" (26.00mm)
  • Diameter: 0.819" (20.80mm)
  • Status: Obsolete
