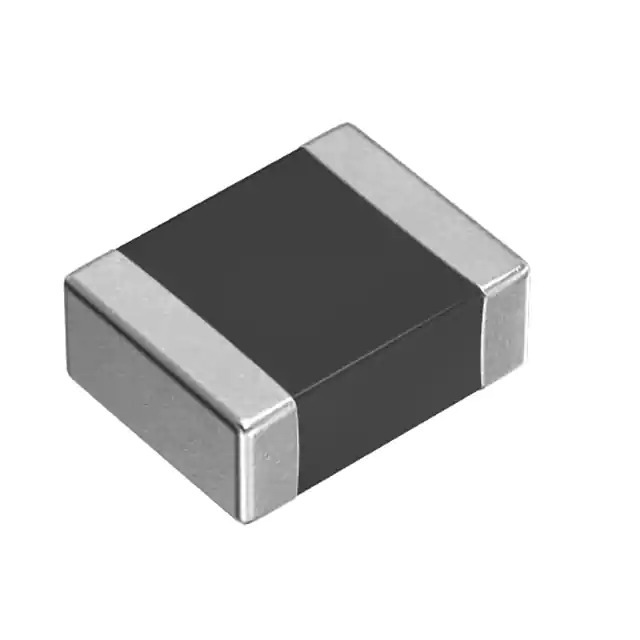

Same model may have multiple batches, images only for reference.

TFM322512ALMA100MTAA

Name: TFM322512ALMA100MTAA
Brand: TDK Corporation
SKU: 1370185
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFM322512ALMA100MTAA
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 10UH 1.2A 360 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	TFM-ALMA
Package	Tape & Reel
Product Status	Active
Type	Thin Film
Material - Core	Metal
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.6A
Shielding	Shielded
DC Resistance (DCR)	360mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	1 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370185-TFM322512ALMA100MTAA
Ultra Librarian 3D Model	Ultra Librarian TFM322512ALMA100MTAA CAD Model

Alternative Products

Description

The TDK Corporation TFM-ALMA series inductor is a thin film component designed for surface mount mounting type.

Mounting Type: Surface Mount
Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max): 0.047" (1.20mm)
Inductance: 10 µH
Current Rating (Max): 1.2 A
Shielding: Shielded
DC Resistance (DCR): 360mOhm Max
Temperature Range: -55°C to 150°C
Tolerance: ±20%
Core Material: Metal
