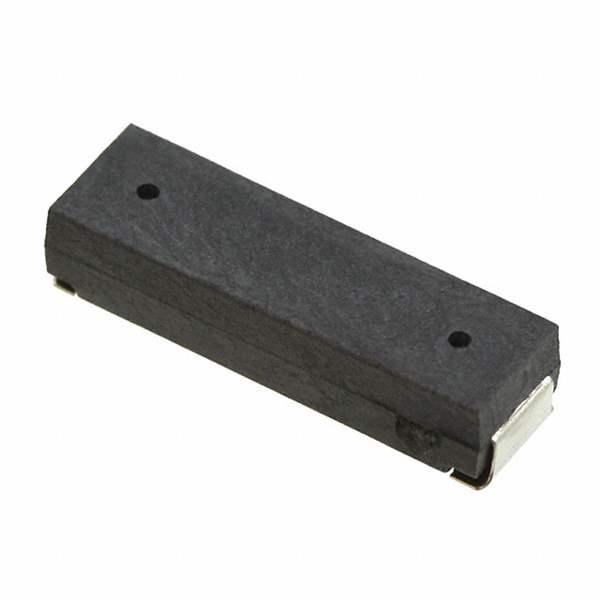

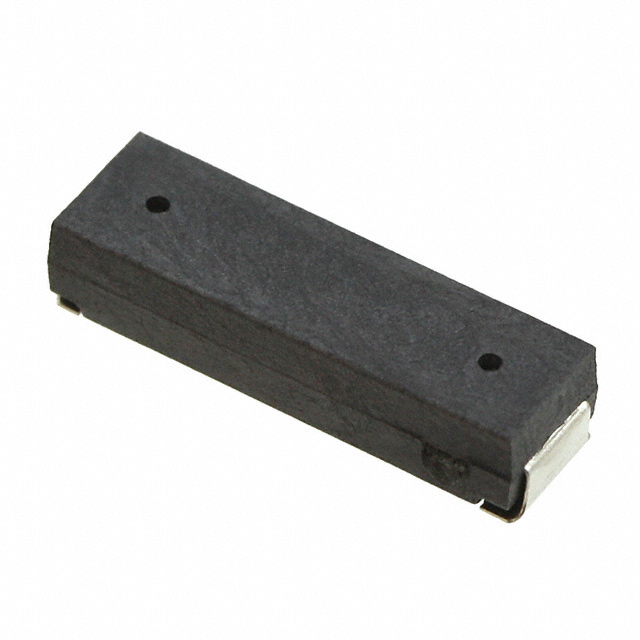

TPL1183525-242Y-236N TDK Corporation
Same model may have multiple batches, images only for reference.

TPL1183525-242Y-236N

Part No TPL1183525-242Y-236N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.36MH 24 OHM SMD
Datasheet
TPL1183525-242Y-236N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Inductance 2.36mH
Tolerance ±3%
DC Resistance (DCR) 24 Ohm
Q @ Freq 53 @ 125kHz
Ratings AEC-Q200
Temperature Range - Operating -40°C to 125°C
Frequency - Test 125kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.106" (2.70mm)
Win Source Part Number 121036-TPL1183525-242Y-236N
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian TPL1183525-242Y-236N CAD Model

Description

The TDK Corporation TPL1183525-242Y-236N is an inductor/coil/choke with a 2.36mH inductance and a DC resistance (DCR) of 24 ohms.

  • GPTDescription: It has a tolerance of ±3% and a Q @ Freq of 53 @ 125kHz.
  • GPTDescription: The inductor is designed for AEC-Q200 ratings and is mounted using SMD (SMT) technology.
  • GPTDescription: It has a height of 0.106" (2.70mm) when seated and can operate in a temperature range of -40°C to 125°C.
  • GPTDescription: Each package contains 2,500 pcs.
