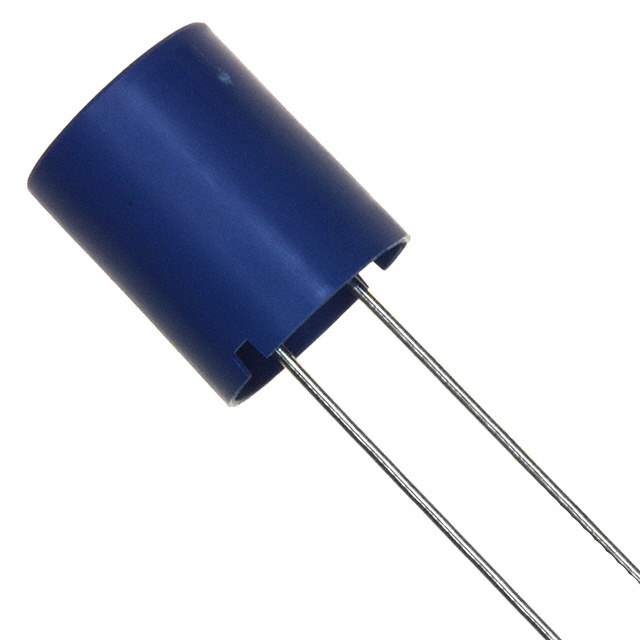

TSL1315RA-680K3R0-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-680K3R0-PF

Part No TSL1315RA-680K3R0-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 3A 68 MOHM TH
Datasheet
TSL1315RA-680K3R0-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 68μH
Tolerance ±10%
Current Rating 3A
Current - Saturation 4.8A
DC Resistance (DCR) 68 mOhm Max
Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 4.4MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122974-TSL1315RA-680K3R0-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-680K3R0-PF CAD Model

Description

The TDK Corporation TSL1315RA-680K3R0-PF is an inductor that is designed for use in electronic circuits.

  • Win Source part number: 122974-TSL1315RA-680K3R0-PF
  • Manufacturer: TDK Corporation
  • Package: ammo
  • Inductance: 68 µH
  • Current rating: 3 A
  • Maximum DC resistance: 68 mOhm
  • Tolerance: ±10%
  • Q: 40 @ 2.52 MHz
  • Self-resonant frequency: 4.4 MHz
  • Category: inductors, coils, and chokes
  • Popularity: medium
