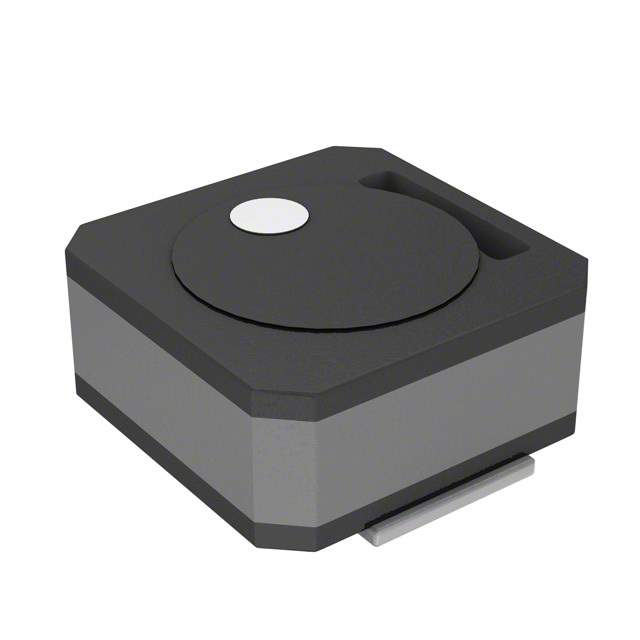

VLCF4020T-2R2N1R7 Real Image
Same model may have multiple batches, images only for reference.

VLCF4020T-2R2N1R7

Part No VLCF4020T-2R2N1R7
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.72A 59 MOHM / Inductor Power Shielded Wirewound 2.2uH 30% 100KHz Ferrite 2.19A 0.059Ohm DCR 1515 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 1.72A
Current - Saturation 1.72A
DC Resistance (DCR) 59 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 036279-VLCF4020T-2R2N1R7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial, Consumer Electronics, Portable Devices, Communications & Networking
Family Name VLCF
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin China, United Kingdom
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-2R2N1R7 CAD Model

Description

The TDK Corporation VLCF4020T-2R2N1R7 is a wirewound inductor with a current rating of 1.72A and an inductance of 2.2μH.

  • Applications: Power management, industrial, consumer electronics, portable devices, communications and networking
  • Mounting: SMD (SMT) mounted
  • Tolerance: ±30%
  • Temperature Range: -40°C to 105°C
  • DC Resistance (DCR): 59 mOhm Max
  • Status: Active product
  • Popularity: High popularity
