Same model may have multiple batches, images only for reference.

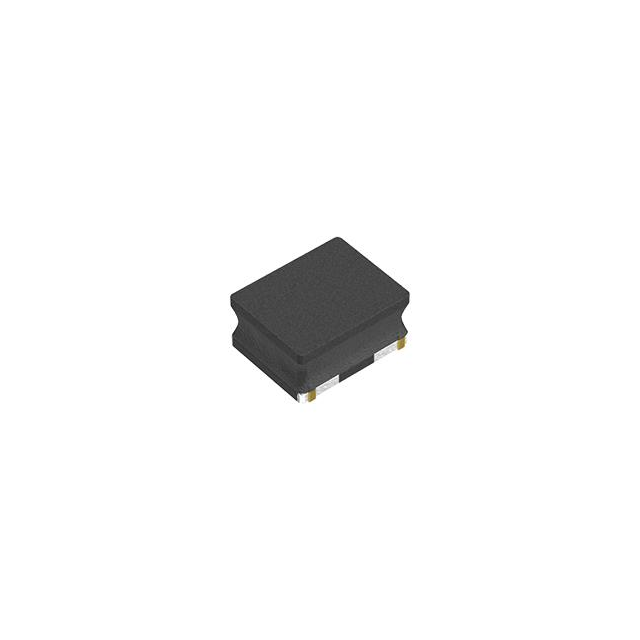

VLS252012CX-100M Real Image
Same model may have multiple batches, images only for reference.

VLS252012CX-100M

Part No VLS252012CX-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 820MA 482 MOHM
Datasheet
VLS252012CX-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 820mA
Current - Saturation 790mA
DC Resistance (DCR) 482 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 2520
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 1117243-VLS252012CX-100M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS252012CX-100M CAD Model

Description

The VLS252012CX-100M is a wirewound inductor from TDK Corporation.

  • High current rating
  • Low DC resistance
  • Popular component for use in various electronic applications
  • Commonly used in power management, filters, and voltage regulators
  • Reliable and high-performing component that can withstand high temperatures and harsh environments
  • Medium popularity and balanced supply and demand status
  • Great choice for your electronic projects
