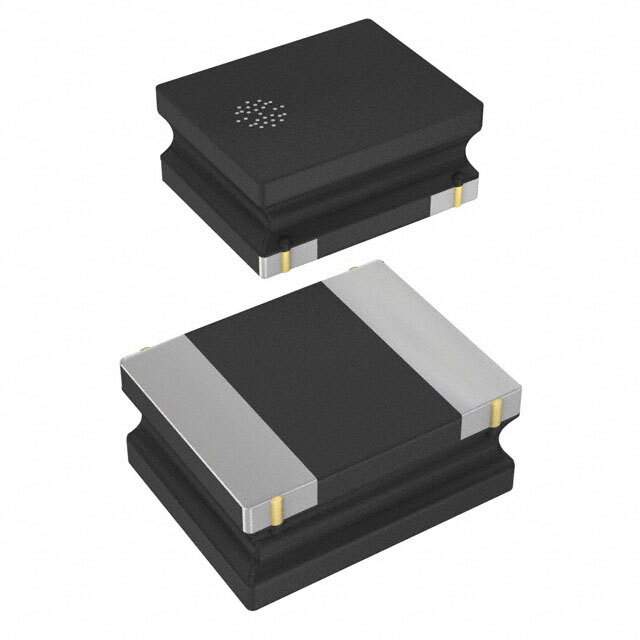

VLS252012HBU-150M Real Image
Same model may have multiple batches, images only for reference.

VLS252012HBU-150M

Part No VLS252012HBU-150M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 700MA 1.2 OHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 700 mA 1.2Ohm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Metal
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 1.2Ohm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-174600-2,445-174600-1,445-174600-6
Standard Package 2,000
Win Source Part Number 1327829-VLS252012HBU-150M
Ultra Librarian 3D Model Ultra Librarian VLS252012HBU-150M CAD Model

Description

The TDK Corporation Drum Core, Wirewound Inductor is a shielded surface mount device (SMD) inductor with a 15μH inductance and a tolerance of ±20%. It has a maximum DC resistance of 1.2Ohm and is packaged on a reel with a standard package of 2,000. The TDK Corporation Drum Core, Wirewound Inductor has a height of 0.047 inches (1.20mm) and is mounted on a surface. It is a part of the Inductors, Coils, Chokes>Fixed Inductors category and has a medium popularity in the market. It is not affected by REACH and has an ECCN of EAR99.
