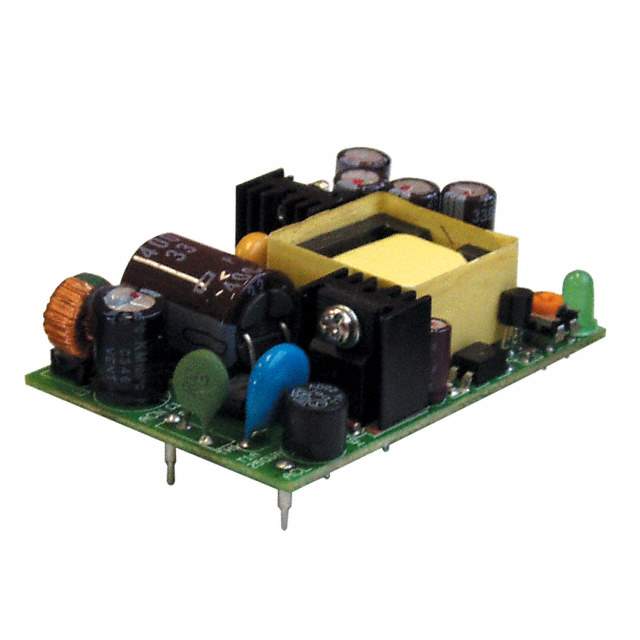

KPS10-24 Real Image1 KPS10-24 Real Image2
Same model may have multiple batches, images only for reference.
KPS10-24 Real Image1 KPS10-24 Real Image2
KPS10-24 Real Image1 KPS10-24 Real Image2
Same model may have multiple batches, images only for reference.

KPS10-24

Part No KPS10-24
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 10W / Open Frame AC DC Converters 1 Output 24V 420mA 85 ~ 264 VAC Input
Datasheet
KPS10-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr TDK-Lambda Americas Inc.
Series KPS (10W)
Package Bulk
Product Status Obsolete
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 420mA
Power (Watts) 10 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 2.56" L x 1.77" W x 0.91" H (65.0mm x 45.0mm x 23.1mm)
Approval Agency CE, CSA, EN, UL
Standard Number 60950-1
Line Regulation ±0.5%
Load Regulation ±1%
Weight 0.133 lb (60.33 g)
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1382428-KPS10-24
Ultra Librarian 3D Model Ultra Librarian KPS10-24 CAD Model

Description

The KPS10-24 is an AC-DC converter from TDK-Lambda Americas Inc. It is part of the KPS (10W) series and is designed for ITE (commercial) applications.

  • Input Voltage: 85VAC to 264VAC
  • Power Rating: 10W
  • Output Current: 420mA
  • Output Voltage: 24V
  • Size: 2.56" L x 1.77" W x 0.91" H (65.0mm x 45.0mm x 23.1mm)
  • Weight: 0.133 lb (60.33 g)
  • Efficiency: 78%
  • Line Regulation: ±0.5%
  • Load Regulation: ±1%
  • Mounting Type: Through-Hole
  • Package: 4-DIP module
