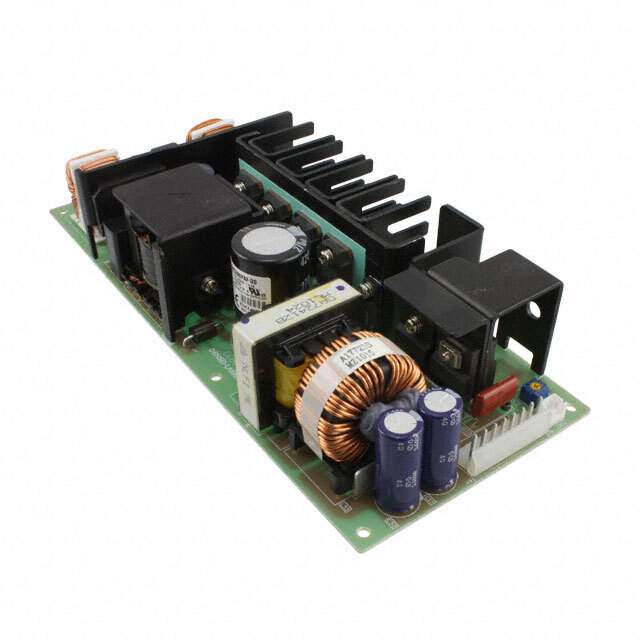

Same model may have multiple batches, images only for reference.

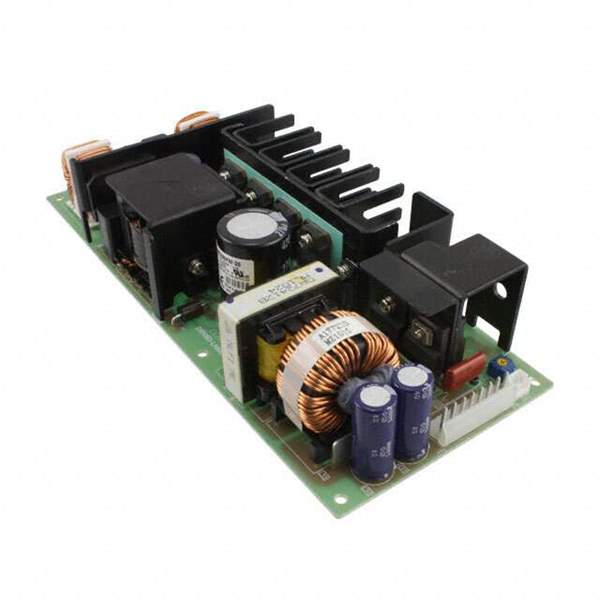

ZWS240PAF-24 Real Image
Same model may have multiple batches, images only for reference.

ZWS240PAF-24

Part No ZWS240PAF-24
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 240W  /  Open Frame AC DC Converters 1 Output 24V 85 ~ 265 VAC, 120 ~ 370 VDC Input
Datasheet
ZWS240PAF-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series ZWS-PAF (240W)
Package Bulk
Product Status Obsolete
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC, 120 ~ 370 VDC
Voltage - Output 1 24V
Current - Output 1 10 A
Power (Watts) 240W (300W Forced Air)
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 82%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type Chassis Mount
Dimension 8.74" L x 3.74" W x 1.65" H (222.0mm x 95.0mm x 42.0mm)
Approval Agency CE, cURus
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Other Names 285-1718,ZWS240PAF24,ZWS240PAF-24,285-ZWS240PAF-24,285-1718-ND
Standard Package 1
Win Source Part Number 1033471-ZWS240PAF-24
Ultra Librarian 3D Model Ultra Librarian ZWS240PAF-24 CAD Model

Description

The ZWS240PAF-24 is a 240W (300W Forced Air) Open Frame external power supply designed for ITE (Commercial) applications.

  • Input Voltage: 85 ~ 265 VAC, 120 ~ 370 VDC
  • Isolation Voltage: 3 kV
  • Features: adjustable output, PFC, and remote On/Off features
  • Package: Bulk
  • Mounting Type: Chassis Mount
  • Temperature Range: -10°C ~ 70°C (With Derating)
  • Dimension: 8.74" L x 3.74" W x 1.65" H (222.0mm x 95.0mm x 42.0mm)
  • Manufacturer: TDK-Lambda Americas Inc.
