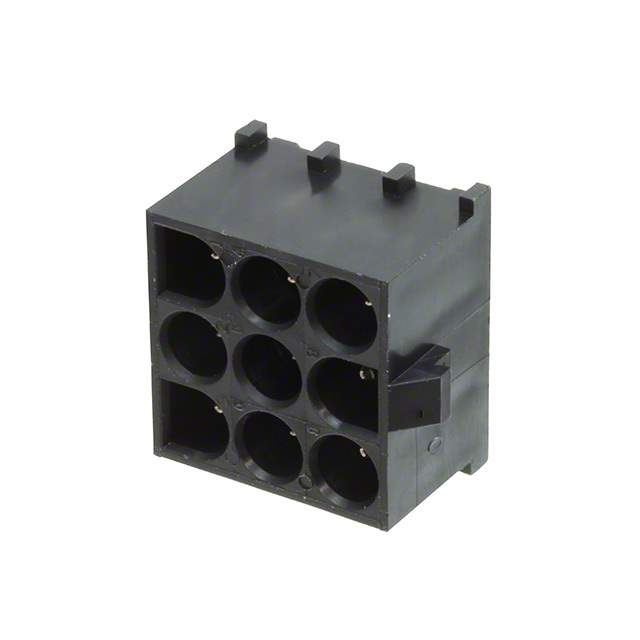

1-641972-1 Real Image
Same model may have multiple batches, images only for reference.

1-641972-1

Part No 1-641972-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 9POS VERT MATE-N-LOK
Datasheet
1-641972-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 12A
Voltage Rating 600VAC
Applications General Purpose
Win Source Part Number 197310-1-641972-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-641972-1 CAD Model

Description

Product Overview for 1-641972-1

The 1-641972-1 is an industry-grade connector known for its superior quality and reliability. It is well-suited for both commercial and industrial sectors where dependable performance is a must.

Applications

  • Power management systems
  • Industrial automation
  • Marine electronics
  • Communication infrastructure

Features and Benefits

  • Highly Reliable: Delivers consistent performance over time.
  • Sturdy Construction: Built to endure harsh operational environments.
  • Efficient Design: Offers easy integration and maintenance.
  • Compact and Flexible: Perfect for applications where space is limited.

The 1-641972-1 stands out for its commitment to stability and robust performance, making it a preferred component for high-stakes applications demanding excellence.
