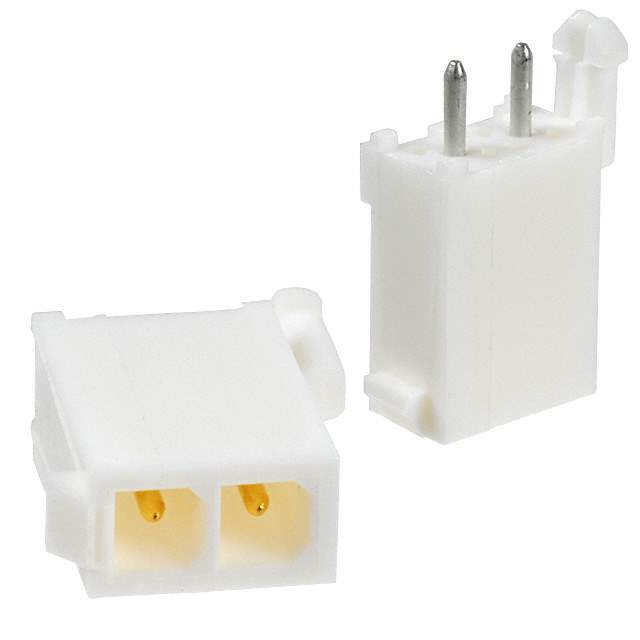

1-770166-0 Real Image
Same model may have multiple batches, images only for reference.

1-770166-0

Part No 1-770166-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770166
Other Names -1-770166-0-CSI,17701660,A32448,1-770166-0,-1-770166-0-LSI,-1-770166-0-SI
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293107-1-770166-0
Ultra Librarian 3D Model Ultra Librarian 1-770166-0 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK header connector is a perfect fit for general purpose applications.

  • Features: Board lock
  • Contact Shape: Circular
  • Pitch: 0.163 inches (4.14mm)
  • Contact Type: Male pin
  • Insulation Material: Polyamide (PA) or nylon
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 600VAC
  • Temperature Range: -20°C to 85°C
  • Shrouded: 4 walls
  • Mounting Type: Through-hole
  • Positions: 2
  • Rows: Single
  • Contact Finish: Tin
  • Contact Finish Thickness: 150.0μin (3.81μm) for both mating and post contacts
  • Insulation Height: 0.531 inches (13.50mm)
  • Insulation Color: White
  • Packaging: Bulk
  • Standard Package: 200
