Part No 130516
Manufacturer TE Connectivity
Catalog Terminals

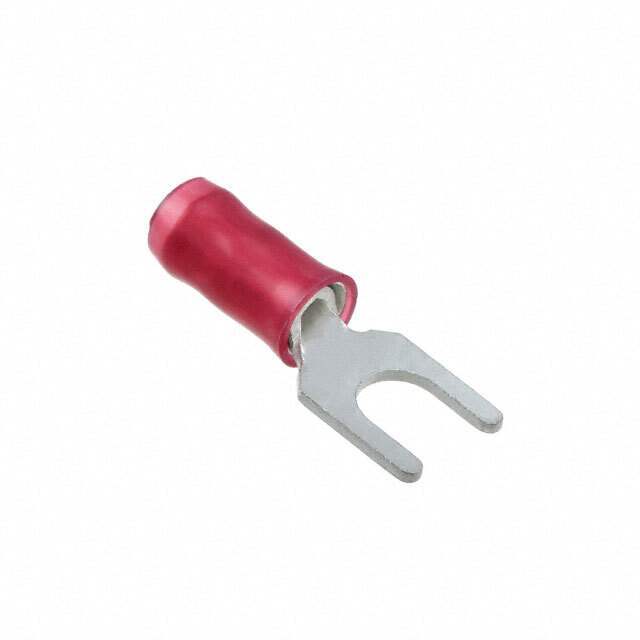

Description CONN SPADE TERM 16-22AWG M4 RED
Datasheet
130516 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308698-130516
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects>Terminals>Spade Connectors
Packaging Bulk
Part Status Active
Terminal Type Standard
Stud/Tab Size M4 Stud
Width - Outer Edges 0.280" (7.11mm)
Length - Overall 0.819" (20.80mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Insulated
Color Red
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.079" ~ 0.126" (2.00mm ~ 3.20mm)
Material - Insulation Polyamide (PA), Nylon
Length - Ring Center to Termination 0.248" (6.30mm)
Length - Termination 0.406" (10.31mm)
Tongue Inside Opening 0.169" (4.29mm)
Ultra Librarian 3D Model Ultra Librarian 130516 CAD Model

Description

Features ● Stud Size: #8, M4<br />● Sealable: No<br />● Wire Insulation Support Retention Type: Insulation Support<br />● Voltage Rating: 300 V<br />● Insulation Sleeve Color: Red<br />● Stripe Color: Red<br />● Spade Terminal Type: Spade Tongue Terminal<br />● Barrel Type: Closed<br />● Terminal Orientation: Straight<br />● Terminal Plating Material: Tin
