Products specifications

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series MultiGig RT2
Package Tube
Product Status Active
Connector Usage Backplane
Connector Type Receptacle, Female Blade Sockets
Connector Style VITA 41, Center
Number of Positions 135
Number of Positions Loaded All
Pitch 0.071" (1.80mm)
Number of Rows 9
Number of Columns 15
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1410135
Standard Package 17 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853966-1410135-1
Ultra Librarian 3D Model Ultra Librarian 1410135-1 CAD Model

Description

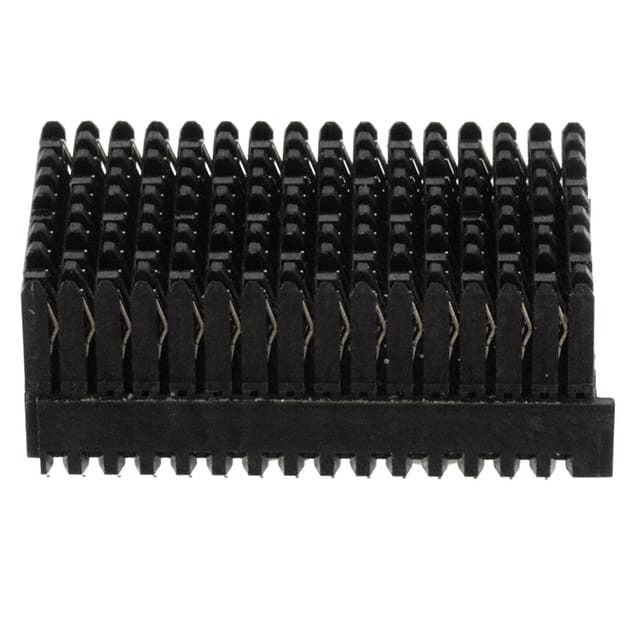

The 853966-1410135-1 is a specialized backplane connector from the MultiGig RT2 series manufactured by TE Connectivity.

  • Positions: 135
  • Pitch: 0.071" (1.80mm)
  • Color: Black
  • Connector Type: Receptacle, Female Blade Sockets
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Packaging: Tube
  • Standard Package: 17 pcs
  • Application: Backplane
  • Temperature Range: -55°C to 105°C
  • Product Status: Active
