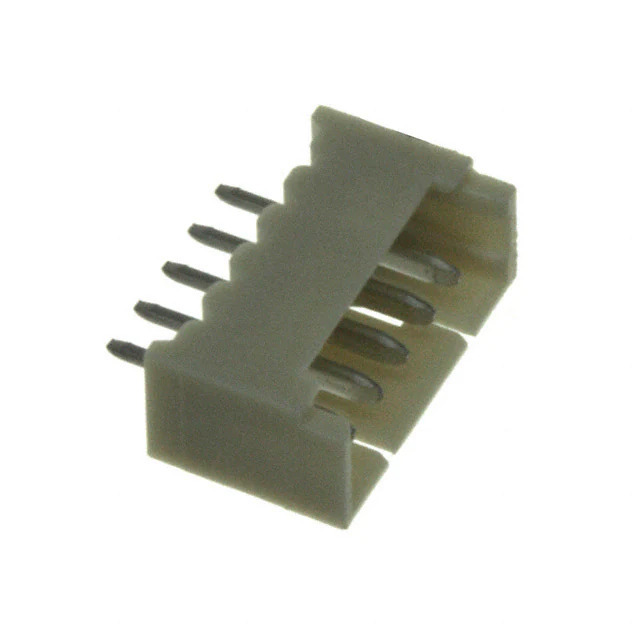

1734598-5 TE Connectivity
Same model may have multiple batches, images only for reference.

1734598-5

Part No 1734598-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series High Performance Interconnect (HPI)
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 5
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type -
Contact Length - Mating -
Contact Length - Post 0.067" (1.70mm)
Overall Contact Length -
Insulation Height 0.185" (4.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 120.0µin (3.05µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA9T), Nylon 9T, Glass Filled
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 100VAC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 1734598
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377340-1734598-5
Ultra Librarian 3D Model Ultra Librarian 1734598-5 CAD Model

Description

The High Performance Interconnect (HPI) series from TE Connectivity AMP Connectors offers a male pin header connector.

  • Product Type: Header
  • Connector Type: Pin Header, Male
  • Mounting Type: Board Mount
  • Style: Board to Cable/Wire
  • Pitch: 1.25mm
  • Number of Positions: 5
  • Application: Automotive
  • Application: General Purpose
  • Application: Industrial
  • Application: Medical
  • Shrouding: Shrouded - 4 Wall
