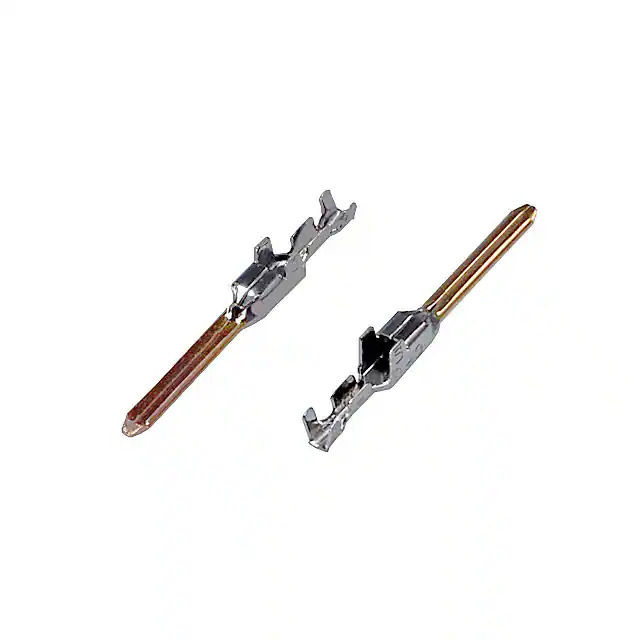

175284-2 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Tab
Contact Termination Crimp
Wire Gauge 24-28 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 175284
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363288-175284-2
Ultra Librarian 3D Model Ultra Librarian 175284-2 CAD Model

Description

The TE Connectivity AMP Connectors 1363288-175284-2 is a rectangular connector contact from TE Connectivity AMP Connectors.

  • Series: Dynamic D-3
  • Contact Type: tab
  • Contact Termination: crimp
  • Wire Gauge: 24 to 28 AWG
  • Contact Finish: gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Packaging: tape and reel (TR)
  • Status: active
  • Base Product Number: 175284
  • HTSUS Code: 8536.90.4000
  • MSL Level: 1 (unlimited)
  • ECCN: EAR99
