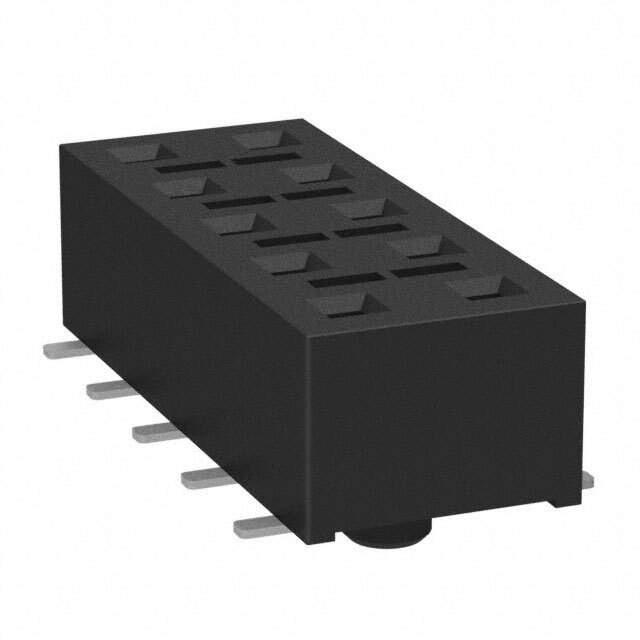

HLE-105-02-L-DV-BE-A-K-TR

Name: HLE-105-02-L-DV-BE-A-K-TR
Brand: Samtec Inc.
SKU: 811656
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HLE-105-02-L-DV-BE-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.1 GOLD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Insulation Color	Black
Insulation Height	0.144" (3.66mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide, Pick and Place
Current Rating (Amps)	4.1A per Contact
Voltage Rating	400VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Manufacturer Pack Quantity	625
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	811659-HLE-105-02-L-DV-BE-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian HLE-105-02-L-DV-BE-A-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. board-to-board connector is a receptacle, bottom entry type connector with 10 positions and 2 rows.

Positions: 10
Rows: 2
Pitch - Mating: 0.100" (2.54mm)
Voltage Rating: 400VAC
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Insulation Color: Black
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C ~ 125°C
Current Rating (Amps) per Contact: 4.1A
Packaging: Reel
Manufacturer Pack Quantity: 625
Applications: Board Guide, Pick and Place
