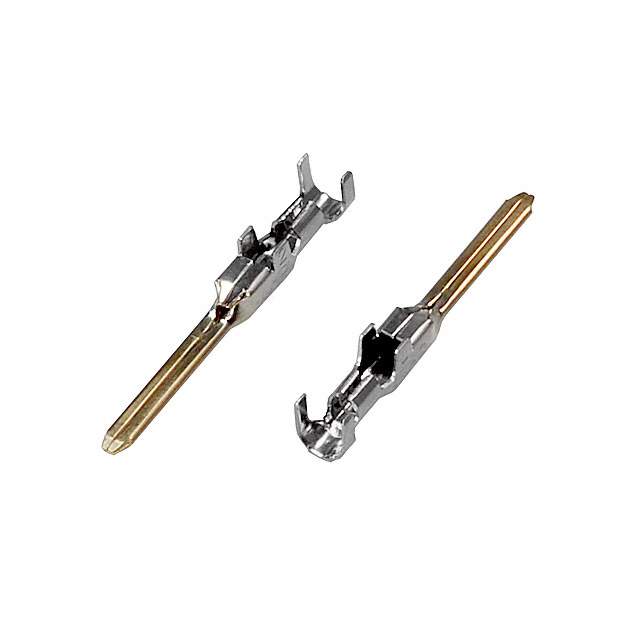

175286-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 300000358-175286-2
Manufacturer TE Connectivity
Category Connectors, Interconnects- Rectangular Connectors- Rectangular Connector Contacts
Series Dynamic D-3
Package Tape & Reel (TR)\ Cut Tape (CT)
Contact Termination Crimp
Base Product Number 175286
Product Status Active
Ultra Librarian 3D Model Ultra Librarian 175286-2 CAD Model

Description

The TE Connectivity 175286 is a rectangular connector contact that belongs to the Dynamic D-3 series.

  • Wire Gauge: 16-20 AWG
  • Contact Termination: Crimp
  • Packaging: Tape & Reel (TR) or Cut Tape (CT)
  • Supply and Demand Status: Active
