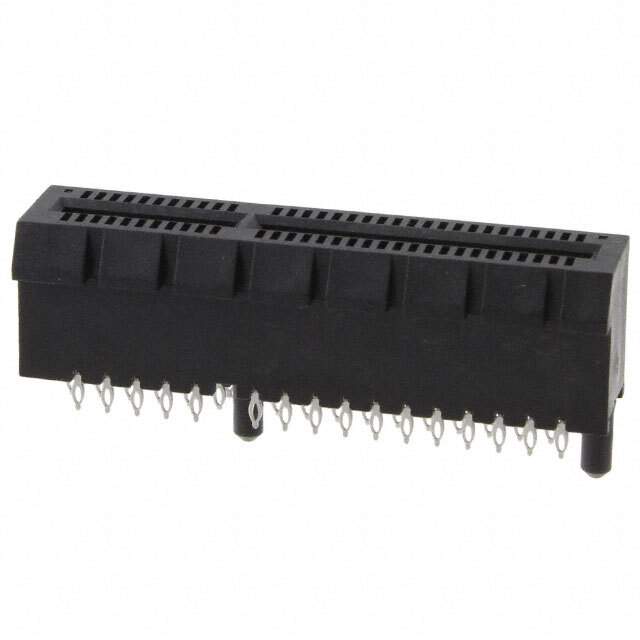

1871058-2 Real Image
Same model may have multiple batches, images only for reference.

1871058-2

Part No 1871058-2
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 64POS 0.039 / 64 Position Female Connector PCI Express™ Gold-Palladium 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Package Tray
Card Type PCI Express™
Gender Female
Number of Positions 64
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Type Through Hole
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold-Palladium
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Thermoplastic
Base Product Number 1871058
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A118299,-1871058-2-SI
Standard Package 40
Win Source Part Number 1015400-1871058-2
Ultra Librarian 3D Model Ultra Librarian 1871058-2 CAD Model

Description

This is a female card edge connector, ideal for use in PCI Express™ applications.

  • Application: PCI Express™
  • Positions: 64
  • Pitch: 0.039 inches (1.00mm)
  • Features: Board Guide, Locking Ramp
  • Termination: Press-Fit
  • Contact Finish: Gold-Palladium
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Readout: Dual
  • Mounting Type: Through Hole
  • Operating Temperature Range: -55°C to 85°C
  • Package: Tray
  • Standard Package: 40
