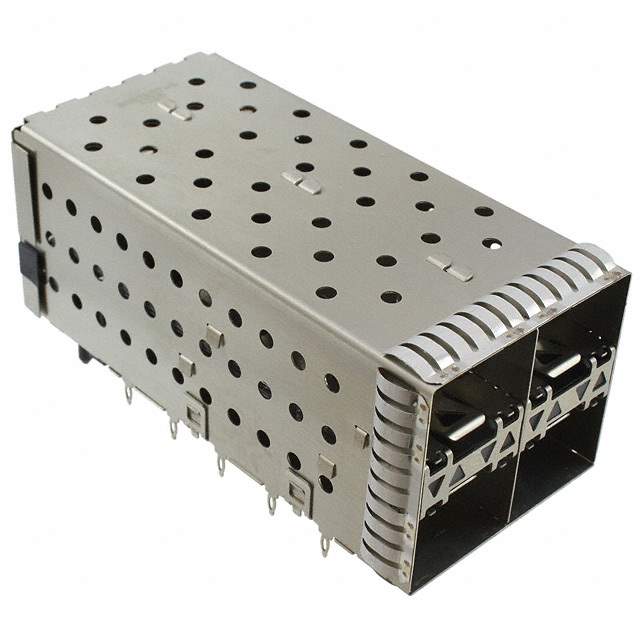

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Style Receptacle with Cage, Ganged (2x2)
Connector Type SFP+
Number of Positions 80 (20 x 4)
Mounting Style Through Hole, Right Angle
Termination Press-Fit
Features Board Guide, EMI Shielded, Light Pipe
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1122841-2007637-5
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2007637-5 CAD Model

Description

It is a tray-packaged component with 80 positions (20 x 4) and a through-hole, right-angle mounting style.

  • Connector Type: SFP+
  • Termination: press-fit
  • Product features: board guide, EMI shielded, and light pipe
  • Receptacle: a receptacle with a cage, ganged (2x2) connector style
  • Manufacturer: TE Connectivity AMP Connectors
