Same model may have multiple batches, images only for reference.

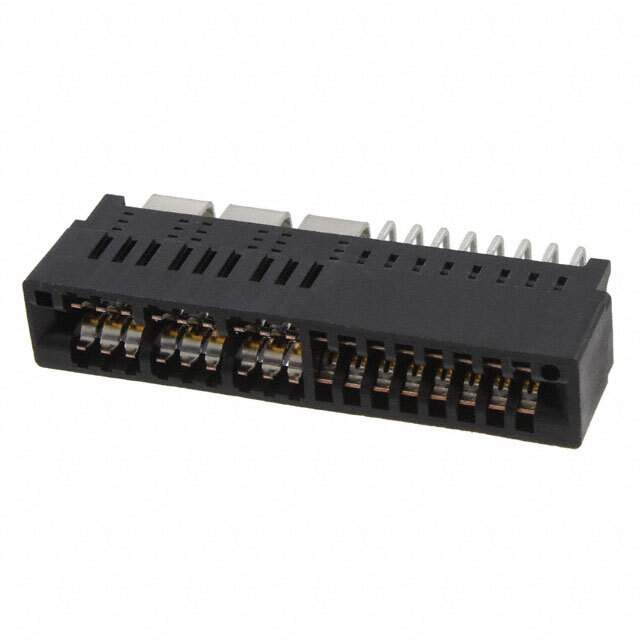

2057372-1 Real Image
Same model may have multiple batches, images only for reference.

2057372-1

Part No 2057372-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FEMALE GOLD / Position Female Connector Non Specified - Dual Edge Gold Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series Standard Edge II
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Read Out Dual
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Material Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 2057372
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2057372-1-SI,A117380,2266-2057372-1
Standard Package 550
Win Source Part Number 1224203-2057372-1
Ultra Librarian 3D Model Ultra Librarian 2057372-1 CAD Model

Description

The 1224203-2057372-1 from TE Connectivity AMP Connectors is a card edge connector that belongs to the Standard Edge II series.

  • Series: Standard Edge II
  • Color: Black
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Copper
  • Insulation Material: Polyester, Glass-Filled
  • Gender: Female
  • Standard Package: 550 Pieces
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C ~ 85°C
  • Category: Card Edge Connectors - Edgeboard Connectors
