Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.310" (7.87mm)
Length - Overall 0.750" (19.05mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Steel
Contact Finish Nickel
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 2238143
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364811-2238143-1
Ultra Librarian 3D Model Ultra Librarian 2238143-1 CAD Model

Description

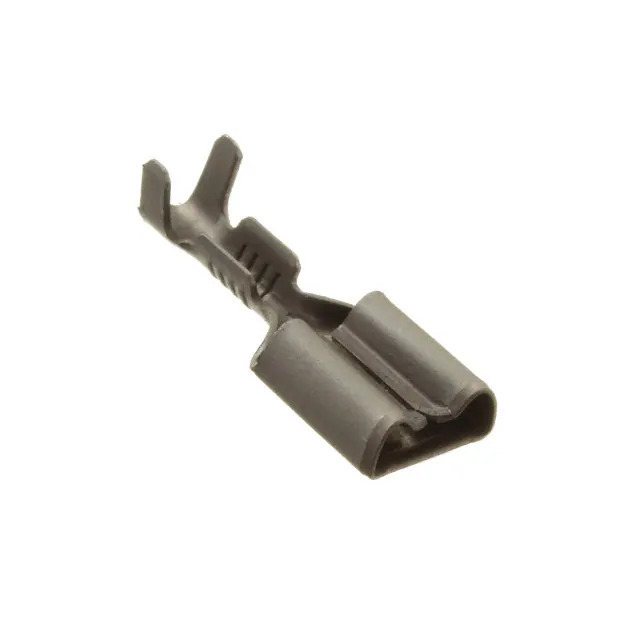

The 2238143-1 is a Quick Disconnect Connector from the TE Connectivity AMP Connectors Faston series.

  • Mounting Type: Free Hanging (in-line)
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Nickel
  • Insulation: Non-Insulated
  • Overall Length: 0.750" (19.05mm)
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.310" (7.87mm)
  • Insulation Diameter: 0.090" to 0.130" (2.29mm to 3.30mm)
  • Status: Active
  • Demand: Moderate
