2335809-1 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2335809-1

Part No 2335809-1
Manufacturer TE Connectivity
Catalog Pluggable Connectors

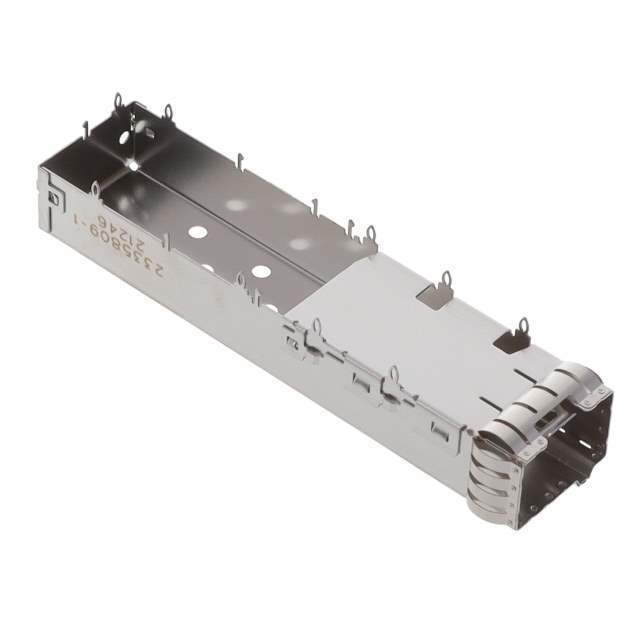

Description CAGE ASSEMBLY WIHT SPRING,SFP-DD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206449-2335809-1
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Pluggable Connectors -Pluggable Connector Assemblies
Package Tray
Product Status Active
Connector Type SFP-DD (Double Density)
Number of Positions 15
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Ultra Librarian 3D Model Ultra Librarian 2335809-1 CAD Model

Description

For applications using ganged cage assemblies, the top surface of the Transceiver Module is to be free of EMI bumps and maintain a flatness of 0.08 mm. The width of the mating transceiver module (portion outside of the cage assembly) cannot exceed the width of the port of the cage assembly. This will prevent any possible interference between ports when inserting the transceiver modules. Port-to-port centerline spacing is 14.25 mm; therefore, the maximum width of the transceiver (outside of the cage assembly) cannot exceed 14 mm
