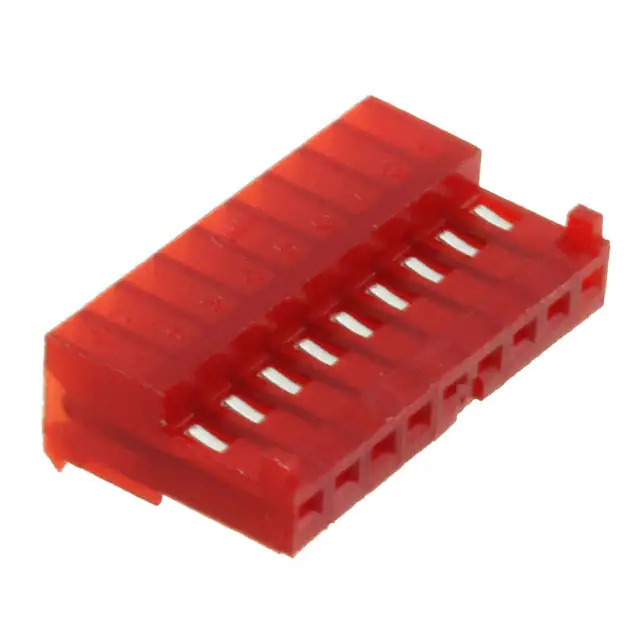

Same model may have multiple batches, images only for reference.
3-643813-9 TE Connectivity
Same model may have multiple batches, images only for reference.

3-643813-9

Part No 3-643813-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 9POS IDC 22AWG TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 9
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line), Right Angle
Fastening Type Locking Ramp
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 22 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Color Red
Base Product Number 643813
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1366217-3-643813-9
Ultra Librarian 3D Model Ultra Librarian 3-643813-9 CAD Model

Description

The TE Connectivity AMP Connectors MTA-100 series is a bulk receptacle connector designed for free hanging and right angle mounting.

  • Mounting Type: Free Hanging, Right Angle
  • End Type: Closed End
  • Fastening Type: Locking Ramp
  • Number of Positions: 9
  • Number of Rows: 1
  • Pitch: 0.100" (2.54mm)
  • Wire Gauge: 22 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: 80.0µin (2.03µm)
  • Color: Red
  • Contact Type: Female Socket
  • Cable Type: Discrete or Ribbon
  • Cable Termination: IDC
