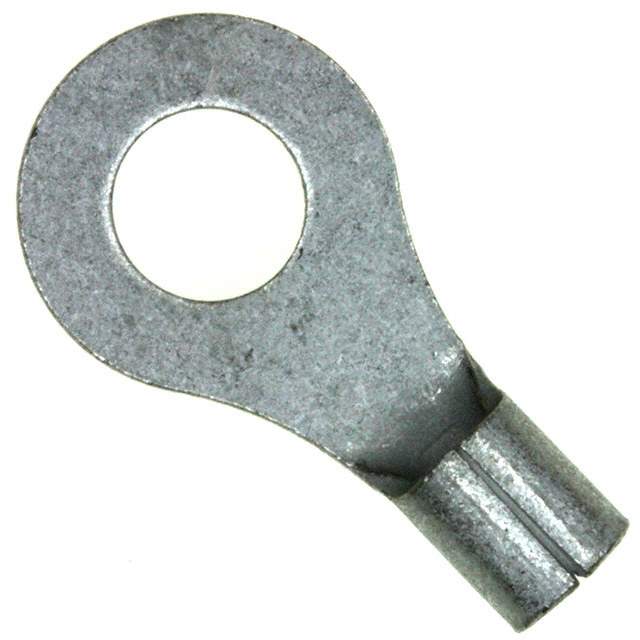

33458 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Mfr TE Connectivity
Series Solistrand
Package Bulk
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.531" (13.49mm)
Length - Overall 1.004" (25.50mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Color -
Contact Material Copper
Contact Finish Tin
Insulation Diameter -
Material - Insulation -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 500 pcs
Win Source Part Number 1380566-33458
Ultra Librarian 3D Model Ultra Librarian 33458 CAD Model

Description

The TE Connectivity 1380566-33458 is a ring connector from the Solistrand series.

  • Series: Solistrand
  • Wire Gauge: 10-12 AWG
  • Termination: Crimp
  • Contact Finish: Tin
  • Material: Copper
  • Package Size: 500 pieces
  • Termination Type: Serrated
  • Seam: Brazed
  • Mounting: Free Hanging (In-Line)
  • Moisture Sensitivity Level: 1 (Unlimited)
