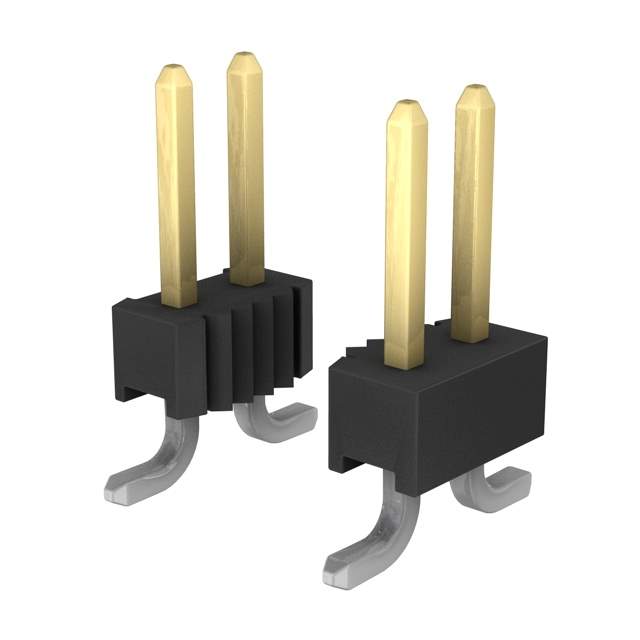

5-146130-9 Real Image
Same model may have multiple batches, images only for reference.

5-146130-9

Part No 5-146130-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HDR BRKWAY 20P STR DUAL SMT
Datasheet
5-146130-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod II
Packaging Tube
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Voltage Rating 30VAC
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 760434-5-146130-9
Popularity Medium
Supply and Demand Status Limited
Family Name 146130
Introduction Date November 25, 2002
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5-146130-9 CAD Model

Description

The TE Connectivity AMP Connectors 760434-5-146130-9 is a male pin header connector that has 20 positions and is loaded with all positions.

  • Positions: 20
  • Voltage Rating: 30VAC
  • Current Rating: 3A
  • Family: 146130
  • Mounting Type: Surface Mount
  • Flammability Rating: UL94 V-0
  • Halogen Free: Yes
  • Popularity: Medium
  • Supply and Demand: Limited
