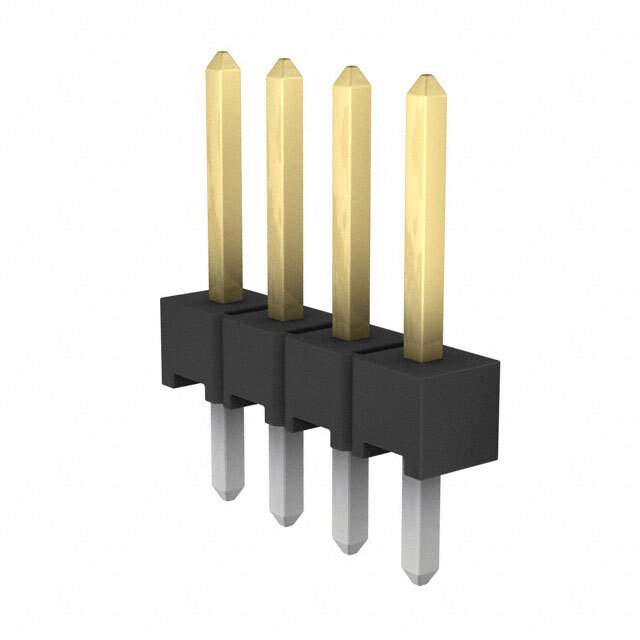

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.440" (11.18mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 146281
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 500
Win Source Part Number 1023149-5-146281-4
Ultra Librarian 3D Model Ultra Librarian 5-146281-4 CAD Model

Description

The AMPMODU Mod II header connector from TE Connectivity AMP Connectors is a male pin connector with four positions and a pitch of 0.100" (2.54mm).

  • Positions: four
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: through-hole
  • Leads: straight
  • Contact Finish (Mating): gold
  • Contact Finish (Post): tin
  • Voltage Rating: -
  • Current Rating: 3A
  • Shrouded: unshrouded
  • Row Spacing (Mating): -
  • Contact Length (Mating): 0.230" (5.84mm)
  • Contact Length (Post): 0.120" (3.05mm)
  • Overall Contact Length: 0.440" (11.18mm)
  • Insulation Height: 0.090" (2.29mm)
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -65°C to 105°C
  • Packaging: bulk
  • Standard Package: 500
