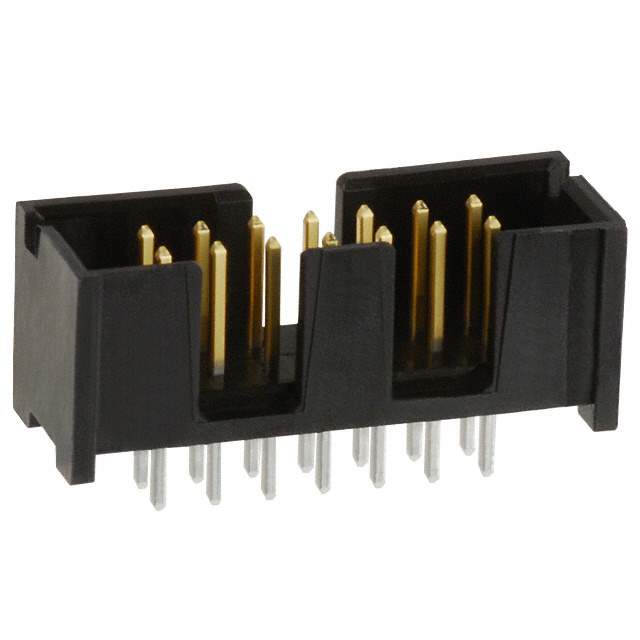

The TE Connectivity AMP Connectors 760131-5103308-2 is a header connector with a series of AMP-Latch.

• Package: Tube
• Positions: 14
• Mounting Type: Through Hole
• Operating Temperature: -65°C ~ 105°C
• Features: Keying Slot
• Connector Type: Male Pin
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Brass
• Current Rating: 1A per contact
• Material Flammability Rating: UL94 V-0
• Style: Board to Cable/Wire
• Pitch - Mating: 0.100" (2.54mm)
• Contact Finish - Mating: Gold or Gold-Palladium
• Contact Finish Thickness - Mating: 15μin (0.38μm)
• Contact Finish - Post: Tin
• Contact Finish Thickness - Post: 100μin (2.54μm)
• Family Name: 5103308
• Insulation Color: Black
• Categories: Connectors, Interconnects
• Shrouding: Shrouded - 4 Wall
• Row Spacing - Mating: 0.100" (2.54mm)
• Contact Length - Post: 0.120" (3.05mm)
• Insulation Height: 0.388" (9.86mm)
• Contact Shape: Square
• Contact Length - Mating: 0.240" (6.10mm)
• Alternative Parts: 52601-G14-4R, 88880-349LF, 88880-037LF
• Introduction Date: February 16, 2006
• ECCN: EAR99
• Country of Origin: China, United States of America
• EOL Date: 2026 (Estimated)
• Supply and Demand Status: Balanced
